Shield Anchors

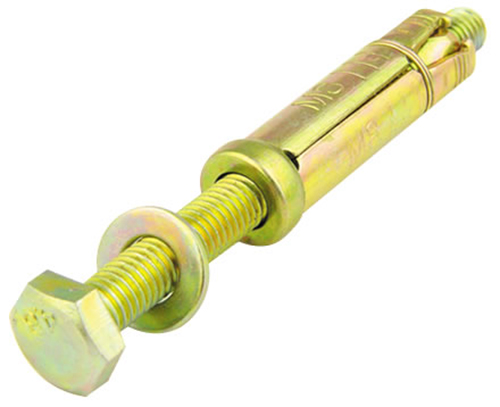

Olympic Loose Bolts

Bolt Type

  • Ideal for floor fixing, when after inserting the shield in the hole, objects have to be slid into place
  • Grade 4.8 bolt

Applications

Holding down anchors for machinery, seating, switchgear, racking & structural fixings.



TDS

Product Code Size mm Thread Diameter Bolt Length mm Max Fixture Thickness mm Shield Diameter mm Shield Length mm Hole Size mm Minimum Hole Depth mm Unit Qty Quantity
125-310-005 6 x 10 M6 50 10 10 40 10 50 100 Log in or apply for an account
125-310-010 6 x 25 M6 65 25 10 40 10 50 50 Log in or apply for an account
125-310-015 6 x 40 M6 80 40 10 40 10 50 50 Log in or apply for an account
125-310-020 8 x 10 M8 60 10 14 50 14 60 50 Log in or apply for an account
125-310-025 8 x 25 M8 75 25 14 50 14 60 25 Log in or apply for an account
125-310-030 8 x 40 M8 90 40 14 50 14 60 25 Log in or apply for an account
125-310-035 10 x 10 M10 70 10 16 60 16 70 25 Log in or apply for an account
125-310-040 10 x 25 M10 90 25 16 60 16 70 25 Log in or apply for an account
125-310-045 10 x 50 M10 110 50 16 60 16 70 25 Log in or apply for an account
125-310-050 10 x 75 M10 140 75 16 60 16 70 25 Log in or apply for an account
125-310-055 12 x 10 M12 90 10 20 80 20 90 20 Log in or apply for an account
125-310-060 12 x 25 M12 110 25 20 80 20 90 15 Log in or apply for an account
125-310-065 12 x 40 M12 120 40 20 80 20 90 15 Log in or apply for an account
125-310-070 12 x 60 M12 140 60 20 80 20 90 15 Log in or apply for an account
