Anchor Bolts



A2 Stainless Steel Anchor Bolt

A2 Stainless Steel Anchor Bolt.

  • Double Threaded Grade A2 Stainless Steel
  • Self-Tapping Pointed DIN-571 Type-C Screw
  • Attach Under Roof To Wood Sub-Structure
  • EPDM ARS-S Seal Washer For Watertightness
  • Hexagonal End For Screwdriver Installation
  • Ideal for use on a tiled roof
  • Sizes available M10 x 200mm and M10 x 250mm
  • Supplied in labelled poly bags.
Product Code Size mm Pack Qty Unit Qty Quantity
270-100-030 10 x 200 2 1 Log in or apply for an account
270-100-035 10 x 250 2 1 Log in or apply for an account

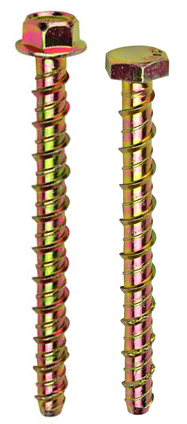

Olympic Concrete Screws

  • Grade 8.8 self tapping anchor
  • Gives high performance in a variety of solid and hollow materials
  • Threading action provides a positive and safe anchorage
  • Simple to install
  • Can be removed and re-fixed
  • Low expansion forces means close to edge fixing is possible
  • Bright zinc plated and yellow passivated
  • Produced and engineered from high quality carbon steel

Applications

Highly suitable for a wide range of construction materials including concrete, stone, brick & block.



TDS

Product Code Type Size mm Drill Diameter mm Anchor Length mm Maximum Fixture Thickness mm Minimum Hole Depth mm Driver Type Unit Qty Quantity
086-418-025 Hexagon Flange Head 6 x 50 6 50 20 40 10mm A/F 100 Log in or apply for an account
086-418-030 Hexagon Flange Head 6 x 75 6 75 45 40 10mm A/F 100 Log in or apply for an account

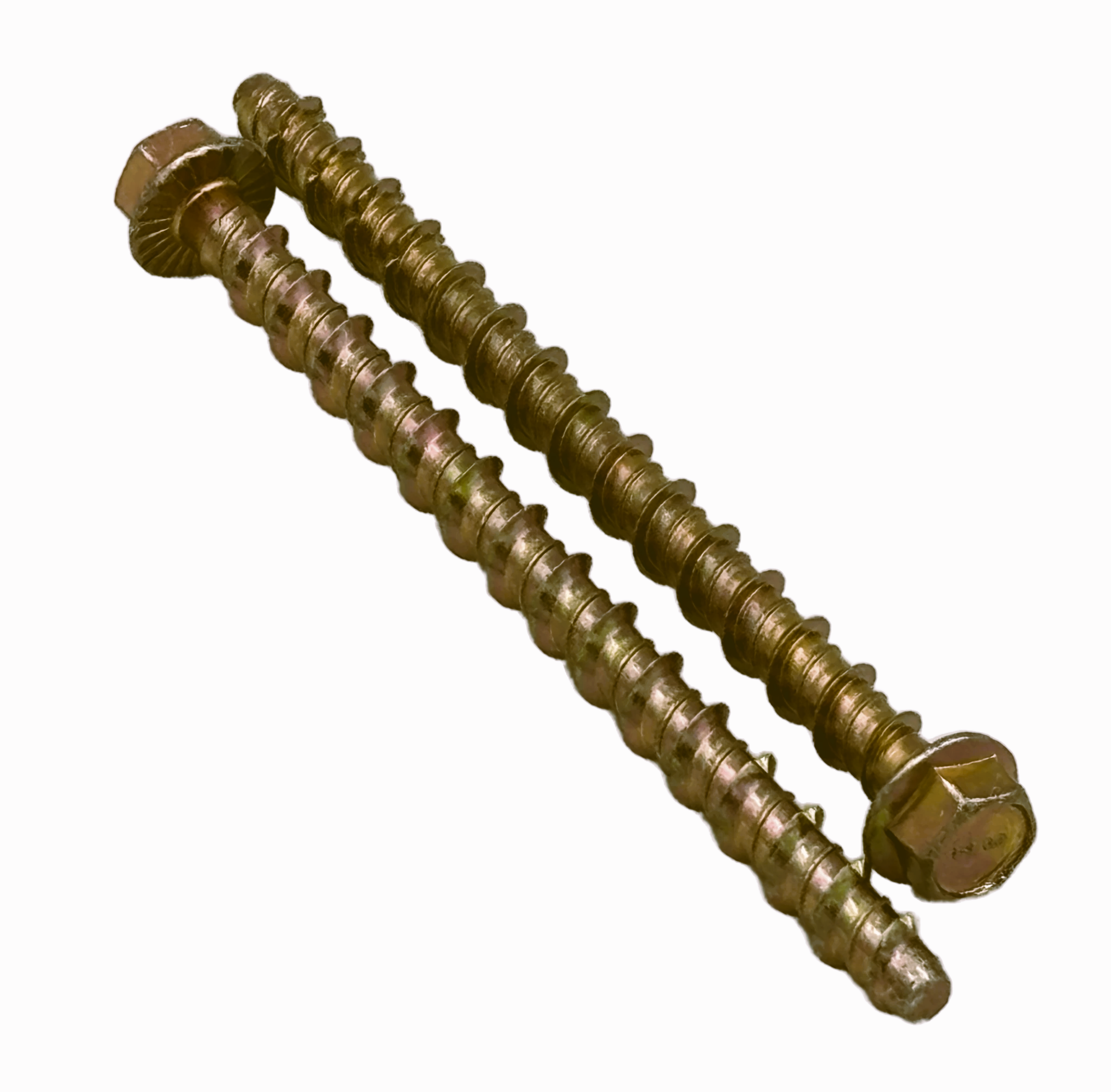

086-418-035 Hexagon Flange Head 6 x 100 6 100 55 40 10mm A/F 100 Log in or apply for an account
086-418-050 Hexagon Flange Head 6 x 150 6 150 105 40 10mm A/F 100 Log in or apply for an account
086-418-055 Hexagon Head 8 x 60 8 60 20 55 15mm A/F 100 Log in or apply for an account
086-418-060 Hexagon Head 8 x 75 8 75 35 55 15mm A/F 100 Log in or apply for an account
086-418-065 Hexagon Head 8 x 100 8 100 60 55 15mm A/F 100 Log in or apply for an account
086-418-067 Hexagon Head 8 x 130 8 130 90 55 15mm A/F 50 Log in or apply for an account
086-418-068 Hexagon Head 8 x 150 8 150 110 55 15mm A/F 50 Log in or apply for an account
086-418-070 Hexagon Head 10 x 60 10 60 10 70 17mm A/F 50 Log in or apply for an account
086-418-075 Hexagon Head 10 x 75 10 75 25 70 17mm A/F 50 Log in or apply for an account
086-418-080 Hexagon Head 10 x 100 10 100 50 70 17mm A/F 50 Log in or apply for an account
086-418-083 Hexagon Head 10 x 130 10 130 80 70 17mm A/F 25 Log in or apply for an account
086-418-085 Hexagon Head 10 x 150 10 150 100 70 17mm A/F 25 Log in or apply for an account
086-418-090 Hexagon Head 12 x 75 12 75 15 85 19mm A/F 50 Log in or apply for an account
086-418-095 Hexagon Head 12 x 100 12 100 40 85 19mm A/F 50 Log in or apply for an account
086-418-100 Hexagon Head 12 x 130 12 130 70 85 19mm A/F 25 Log in or apply for an account
086-418-105 Hexagon Head 12 x 150 12 150 90 85 19mm A/F 20 Log in or apply for an account
086-418-110 Hexagon Head 12 x 200 12 200 140 85 19mm A/F 20 Log in or apply for an account
086-418-215 Countersunk Head 6 x 100 6 100 55 55 Torx T-30 50 Log in or apply for an account

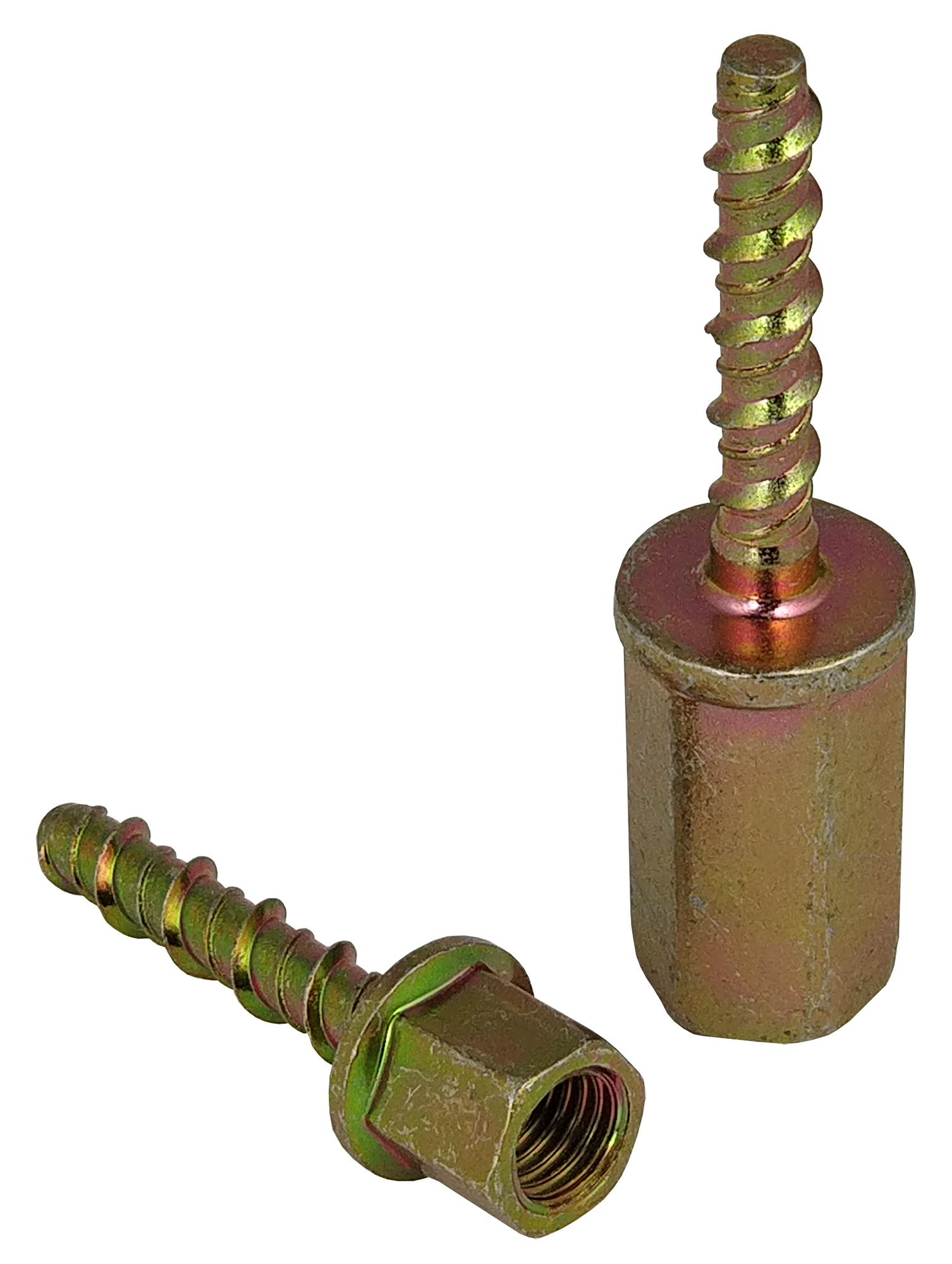

Olympic Hexagon Rod Hangers

  • High performance fixing for many solid materials
  • Threading action provides a positive and safe anchorage
  • Simple & fast to install
  • Can be removed and re-fixed
  • Engineered from high quality carbon steel
  • Zinc plated yellow passivated finish

Applications

Ideal for suspending steel threaded rods to support pipes, fire protection equipment, electrical conduit, cable tray and lowered ceiling systems.



TDS

Product Code Internal Thread Size mm Drill Diameter mm Overall Length mm Anchor Thread Length mm Min. Hole Depth mm Hexagon Size AF mm Unit Qty Quantity
086-418-300 M8 6 55 40 50 13 50 Log in or apply for an account
086-418-310 M10 6 55 40 50 13 50 Log in or apply for an account
086-418-320 M8/M10 6 75 40 50 17 50 Log in or apply for an account
