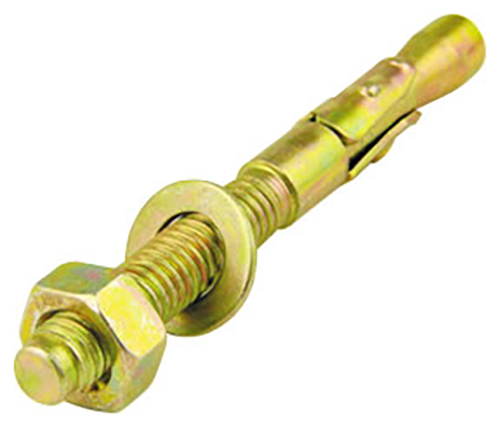

Olympic Collar Bolts

Stud Anchors

  • A through fixing ideal for situations where installation has to be made without marking out, removal and repositioning
  • For use in concrete and rock
  • Projecting relief at the top of the bolt protects the thread during installation
  • Zinc plated & yellow passivated

Applications

Holding down machinery.
Support anchoring for racking and shelving, balustrading, fencing & barriers.
Cladding restraint anchoring.
Structural steel holding down anchors.
Fixing back wall plates, doors etc.



TDS

Product Code Size mm Hole Size mm Max Fixture Thickness mm Min Hole Depth mm Min Thickness Base Material mm Fixture Clearance Hole Size mm Unit Qty Quantity
125-305-025 8 x 50 8 8 30 75 10 100 Log in or apply for an account
125-305-037 8 x 75 8 12 50 105 10 50 Log in or apply for an account
125-305-038 8 x 90 8 16 65 130 10 50 Log in or apply for an account
125-305-045 8 x 115 8 20 85 150 10 50 Log in or apply for an account
125-305-049 8 x 130 8 24 95 170 10 50 Log in or apply for an account
125-305-052 10 x 70 10 15 40 110 12 50 Log in or apply for an account
125-305-065 10 x 90 10 20 55 130 12 50 Log in or apply for an account
125-305-075 10 x 120 10 50 55 160 12 25 Log in or apply for an account
125-305-077 10 x 150 10 60 75 190 12 25 Log in or apply for an account
125-305-080 12 x 75 12 15 45 115 14 25 Log in or apply for an account
125-305-082 12 x 90 12 17 55 130 14 25 Log in or apply for an account
125-305-090 12 x 110 12 20 75 150 14 25 Log in or apply for an account
125-305-097 12 x 140 12 22 100 180 14 20 Log in or apply for an account
125-305-100 12 x 180 12 25 140 220 14 15 Log in or apply for an account
125-305-105 16 x 90 16 24 45 130 18 15 Log in or apply for an account
125-305-110 16 x 125 16 27 75 165 18 10 Log in or apply for an account
125-305-112 16 x 145 16 30 95 185 18 10 Log in or apply for an account
125-305-118 16 x 170 16 65 85 210 18 10 Log in or apply for an account
125-305-125 20 x 120 20 25 70 160 22 5 Log in or apply for an account
125-305-132 20 x 170 20 30 120 210 22 5 Log in or apply for an account
