Holesaws

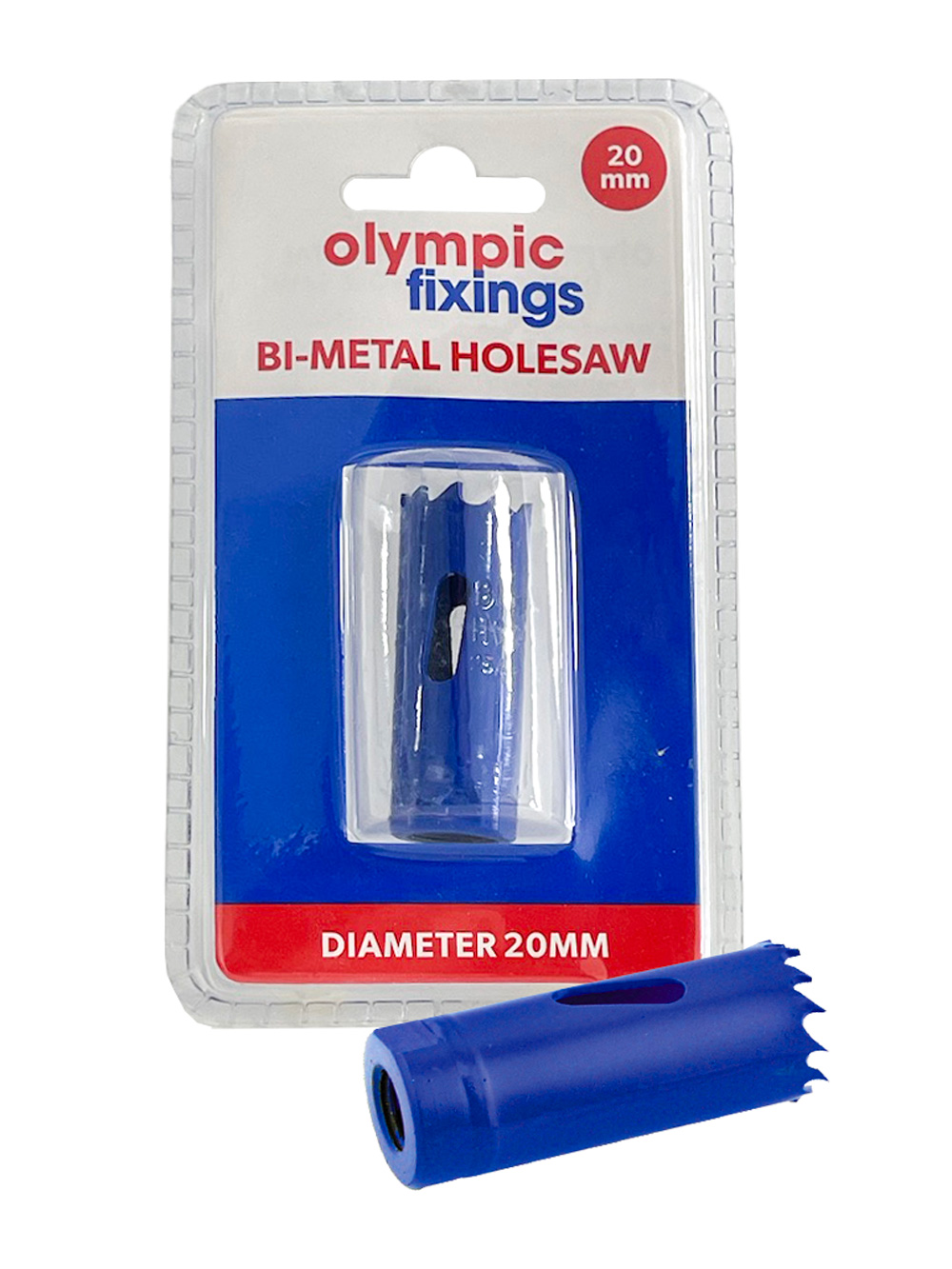

Olympic Holesaws

  • Bi-metal design
  • M42 HSS cutting edge – 8% Cobalt
  • Premium quality steel
  • 4/6 TPI variable tooth pattern
  • 38mm (1 1/2”) cutting depth
  • Holesaws/arbors fully interchangeable with most other brands
  • Separate arbor
  • Supplied individually in hanging blister packs

Applications

Sheet metal, cast iron, Aluminium, wood, plywood, plastics and pipe.

Recommendations

Ensure the recommended speed is used for different diameters of holesaw.

Use the correct cutting fluid when making holes in metal, other than cast iron which should be cut dry.

Use correct level of pressure when hole cutting. Too much or too little can damage cutting edges.

Pilot drills should be correctly assembled to ensure they do not extend beyond cutting teeth further than the material thickness being cut.

Product Code Diameter
mm
Diameter
Inches
Unit
Qty
Quantity
090-202-005 16 5/8 1 Log in or apply for an account
090-202-010 17 11/16 1 Log in or apply for an account
090-202-015 19 3/4 1 Log in or apply for an account
090-202-025 20 25/32 1 Log in or apply for an account
090-202-035 22 7/8 1 Log in or apply for an account
090-202-045 25 1 1 Log in or apply for an account
090-202-055 29 1 1/8 1 Log in or apply for an account
090-202-060 30 1 3/16 1 Log in or apply for an account
090-202-065 32 1 1/4 1 Log in or apply for an account
090-202-075 35 1 3/8 1 Log in or apply for an account
090-202-085 38 1 1/2 1 Log in or apply for an account
090-202-095 40 1 9/16 1 Log in or apply for an account
090-202-100 41 1 5/8 1 Log in or apply for an account
090-202-105 44 1 3/4 1 Log in or apply for an account
090-202-110 48 1 7/8 1 Log in or apply for an account
090-202-115 50 1 31/32 1 Log in or apply for an account
090-202-125 51 2 1 Log in or apply for an account
090-202-135 54 2 1/8 1 Log in or apply for an account
090-202-145 57 2 1/4 1 Log in or apply for an account
090-202-155 60 2 3/8 1 Log in or apply for an account
090-202-165 64 2 1/2 1 Log in or apply for an account
090-202-175 65 2 9/16 1 Log in or apply for an account
090-202-185 67 2 5/8 1 Log in or apply for an account
090-202-190 68 2 11/16 1 Log in or apply for an account
090-202-195 70 2 3/4 1 Log in or apply for an account
090-202-205 73 2 7/8 1 Log in or apply for an account
090-202-210 75 2 31/32 1 Log in or apply for an account
090-202-215 76 3 1 Log in or apply for an account
090-202-225 79 3 1/8 1 Log in or apply for an account
090-202-235 83 3 1/4 1 Log in or apply for an account
090-202-240 86 3 3/8 1 Log in or apply for an account
090-202-245 89 3 1/2 1 Log in or apply for an account
090-202-255 95 3 3/4 1 Log in or apply for an account
090-202-257 98 3 7/8 1 Log in or apply for an account
090-202-259 100 3 15/16 1 Log in or apply for an account
090-202-260 102 4 1 Log in or apply for an account
090-202-265 105 4 1/8 1 Log in or apply for an account
090-202-270 111 4 3/8 1 Log in or apply for an account
090-202-272 114 4 1/2 1 Log in or apply for an account
090-202-273 121 4 3/4 1 Log in or apply for an account
090-202-275 127 5 1 Log in or apply for an account
090-202-278 152 6 1 Log in or apply for an account

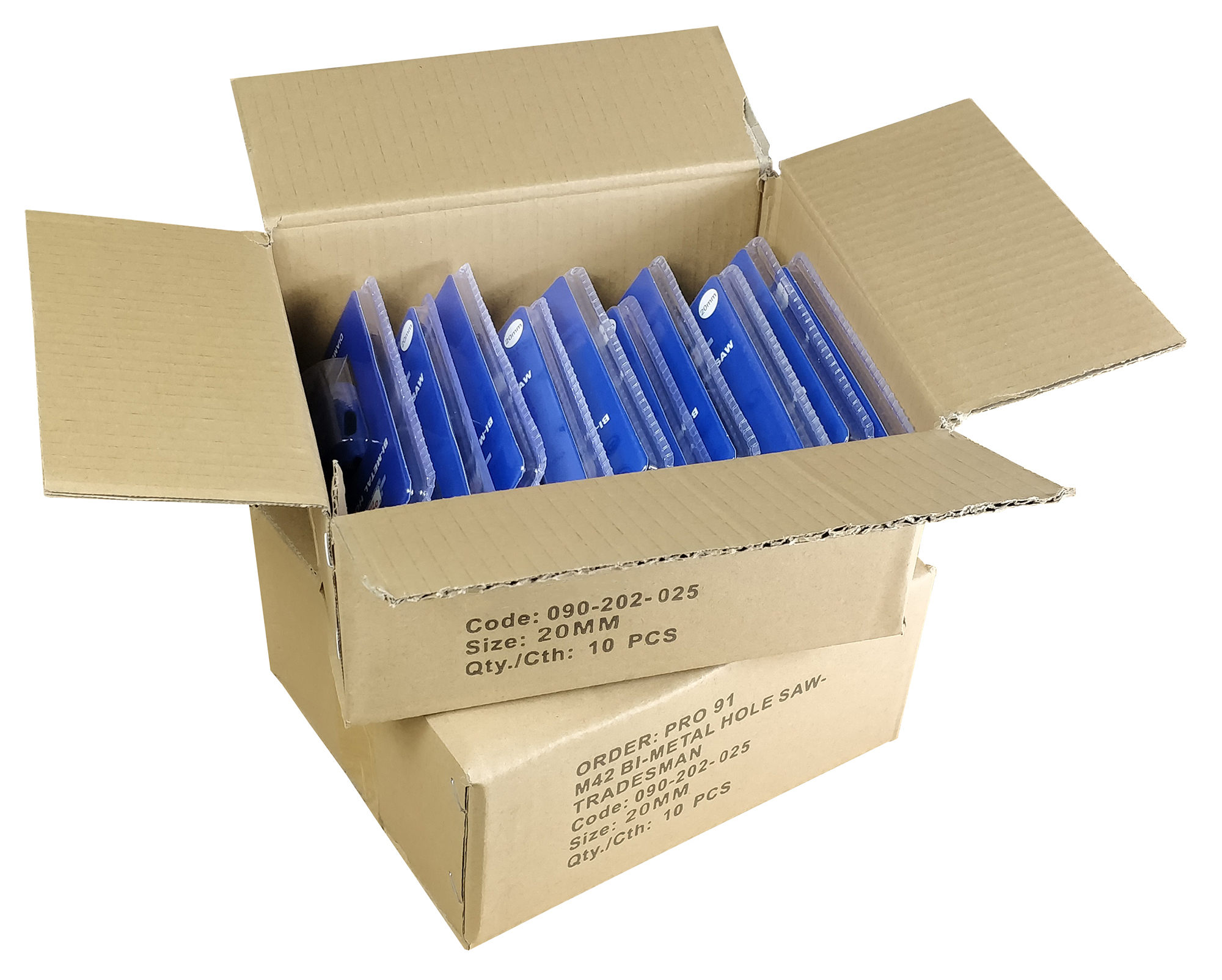

Olympic Holesaws - Bulk Packs

Product Code Diameter
mm
Diameter
Inches
Pack Qty Unit Qty Quantity
090-202-450 20 25/32 20 1 Log in or apply for an account
090-202-460 25 1 20 1 Log in or apply for an account


Morse Impact Holesaws

Impact-ready hole saws are the perfect option for all of your sheet metal cutting needs. Tackle a variety of thin metals and quickly change sizes with the ¼" impact shank

  • Bi-metal
  • Cuts holes with minimal material removal
  • ¼" quick chuck-change impact shank
  • Quick changeovers
  • Faster hole cutting
  • Spring for quick slug removal
  • 20mm, 25mm & 32mm Impact hole saws available in Trade friendly kit
Product Code Size Inch Size mm Model Unit Qty Quantity
090-200-700 3/4 19 IHS12 1 Log in or apply for an account
090-200-705 25/32 20 IHS125 1 Log in or apply for an account
090-200-710 7/8 22 IHS14 1 Log in or apply for an account
090-200-715 1 25 IHS16 1 Log in or apply for an account
090-200-720 1 1/8 29 IHS18 1 Log in or apply for an account
090-200-725 1 1/4 32 IHS20 1 Log in or apply for an account
090-200-730 1 3/8 35 IHS22 1 Log in or apply for an account
090-200-735 1 1/2 38 IHS24 1 Log in or apply for an account
090-200-740 7/8, 1 1/8, 1 3/8 20mm, 25mm, 32mm IHSKITIMP 1 Log in or apply for an account


Morse Kraken Holesaws

  • Carbide tipped teeth
  • Faster cutting
  • Better chip clearance for longer life
  • Smaller slug dimensions for easier slug removal
  • Smooth entry cut resulting in less torque

Applications:

Fiberglass, Wood, Fiberboard, Stainless Steel, Drywall, Plaster, Laminates.

Morse Kraken Counter Display Stand

23pcs Display stand also available. (245-465-461)

Product Code Ref
No.
Diameter
mm
Diameter
Inches
Unit Qty Quantity
090-200-400 MHSTK105 16 5/8 1 Log in or apply for an account
090-200-405 MHSTK11 17 11/16 1 Log in or apply for an account
090-200-410 MHSTK12 19 3/4 1 Log in or apply for an account
090-200-415 MHSTK125 20 25/32 1 Log in or apply for an account
090-200-420 MHSTK13 21 13/16 1 Log in or apply for an account
090-200-425 MHSTK14 22 7/8 1 Log in or apply for an account
090-200-430 MHSTK15 24 15/16 1 Log in or apply for an account
090-200-435 MHSTK16 25 1 1 Log in or apply for an account
090-200-440 MHSTK17 27 1 1/16 1 Log in or apply for an account
090-200-445 MHSTK18 29 1 1/8 1 Log in or apply for an account
090-200-450 MHSTK19 30 1 3/16 1 Log in or apply for an account
090-200-455 MHSTK20 32 1 1/4 1 Log in or apply for an account
090-200-460 MHSTK21 33 1 5/16 1 Log in or apply for an account
090-200-465 MHSTK22 35 1 3/8 1 Log in or apply for an account
090-200-470 MHSTK23 37 1 7/16 1 Log in or apply for an account
090-200-475 MHSTK24 38 1 1/2 1 Log in or apply for an account
090-200-480 MHSTK25 40 1 9/16 1 Log in or apply for an account
090-200-485 MHSTK26 41 1 5/8 1 Log in or apply for an account
090-200-490 MHSTK27 43 1 11/16 1 Log in or apply for an account
090-200-495 MHSTK28 44 1 3/4 1 Log in or apply for an account
090-200-500 MHSTK29 46 1 13/16 1 Log in or apply for an account
090-200-505 MHSTK30 48 1 7/8 1 Log in or apply for an account
090-200-510 MHSTK32 51 2 1 Log in or apply for an account
090-200-515 MHSTK33 52 2 1/16 1 Log in or apply for an account
090-200-520 MHSTK34 54 2 1/8 1 Log in or apply for an account
090-200-525 MHSTK36 57 2 1/4 1 Log in or apply for an account
090-200-530 MHSTK37 59 2 5/16 1 Log in or apply for an account
090-200-535 MHSTK38 60 2 3/8 1 Log in or apply for an account
090-200-540 MHSTK40 64 2 1/2 1 Log in or apply for an account
090-200-545 MHSTK41 65 2 9/16 1 Log in or apply for an account
090-200-550 MHSTK42 67 2 5/8 1 Log in or apply for an account
090-200-555 MHSTK44 70 2 3/4 1 Log in or apply for an account
090-200-560 MHSTK46 73 2 7/8 1 Log in or apply for an account
090-200-565 MHSTK48 76 3 1 Log in or apply for an account
090-200-570 MHSTK50 79 3 1/8 1 Log in or apply for an account
090-200-575 MHSTK52 83 3 1/4 1 Log in or apply for an account
090-200-580 MHSTK54 86 3 3/8 1 Log in or apply for an account
090-200-585 MHSTK56 89 3 1/2 1 Log in or apply for an account
090-200-590 MHSTK58 92 3 5/8 1 Log in or apply for an account
090-200-595 MHSTK60 95 3 3/4 1 Log in or apply for an account
090-200-600 MHSTK62 98 3 7/8 1 Log in or apply for an account
090-200-605 MHSTK64 102 4 1 Log in or apply for an account
090-200-610 MHSTK66 105 4 1/8 1 Log in or apply for an account
090-200-615 MHSTK68 108 4 1/4 1 Log in or apply for an account
090-200-620 MHSTK70 111 4 3/8 1 Log in or apply for an account
090-200-625 MHSTK72 114 4 1/2 1 Log in or apply for an account
090-200-630 MHSTK76 121 4 3/4 1 Log in or apply for an account
090-200-635 MHSTK80 127 5 1 Log in or apply for an account
090-200-640 MHSTK84 133 5 1/4 1 Log in or apply for an account
090-200-645 MHSTK88 140 5 1/2 1 Log in or apply for an account
090-200-650 MHSTK92 146 5 3/4 1 Log in or apply for an account
090-200-655 MHSTK96 152 6 1 Log in or apply for an account
245-465-461

Morse Kraken Complete Stand - 23pcs
1 x 090-200-415 - 20MM Kraken Holesaw (MHSTK125)
1 x 090-200-435 - 25MM Kraken Holesaw (MHSTK16)
1 x 090-200-455 - 32MM Kraken Holesaw (MHSTK20)
1 x 090-200-510 - 51MM Kraken Holesaw (MHSTK32)
1 x 090-200-540 - 64MM Kraken Holesaw (MHSTK40)
1 x 090-200-555 - 70MM Kraken Holesaw (MHSTK44)
1 x 090-200-565 - 76MM Kraken Holesaw (MHSTK48)
1 x 090-200-625 - 114MM Kraken Holesaw (MHSTK72)
1 x 090-200-655 - 152MM Kraken Holesaw (MHSTK96)
2 x 090-205-025 - 5/8” - 18 Morse Arbor to fit holesaws 32-162mm (MA45PS)
2 x 090-205-005 - 1/2” - 20 Morse Arbor to fit holesaws 14-30mm (MA34)
10 x 090-210-017 - 6mm x 79mm Pilot drill for all arbors (MAPD301)

1 Log in or apply for an account

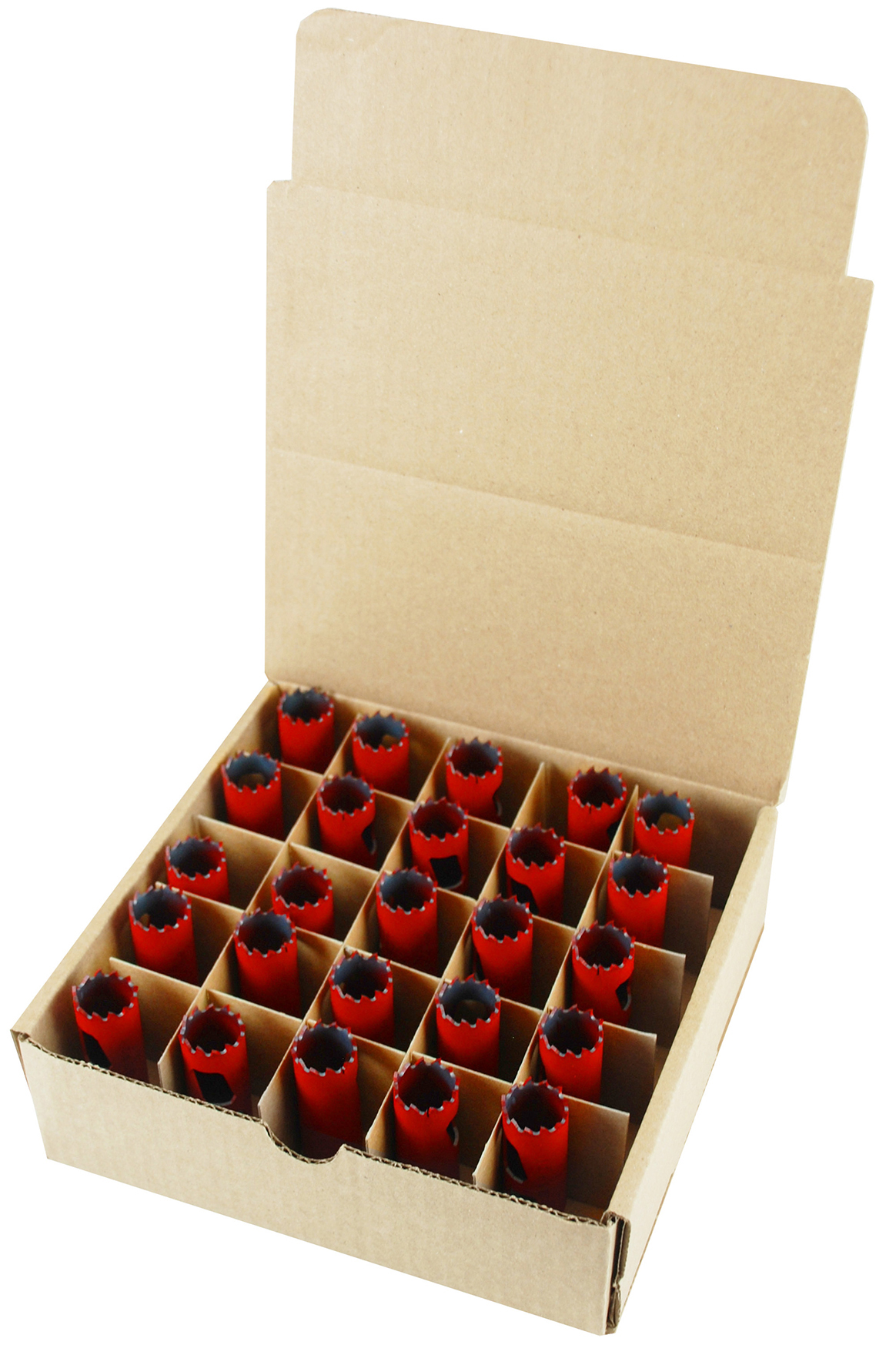

Morse Holesaws

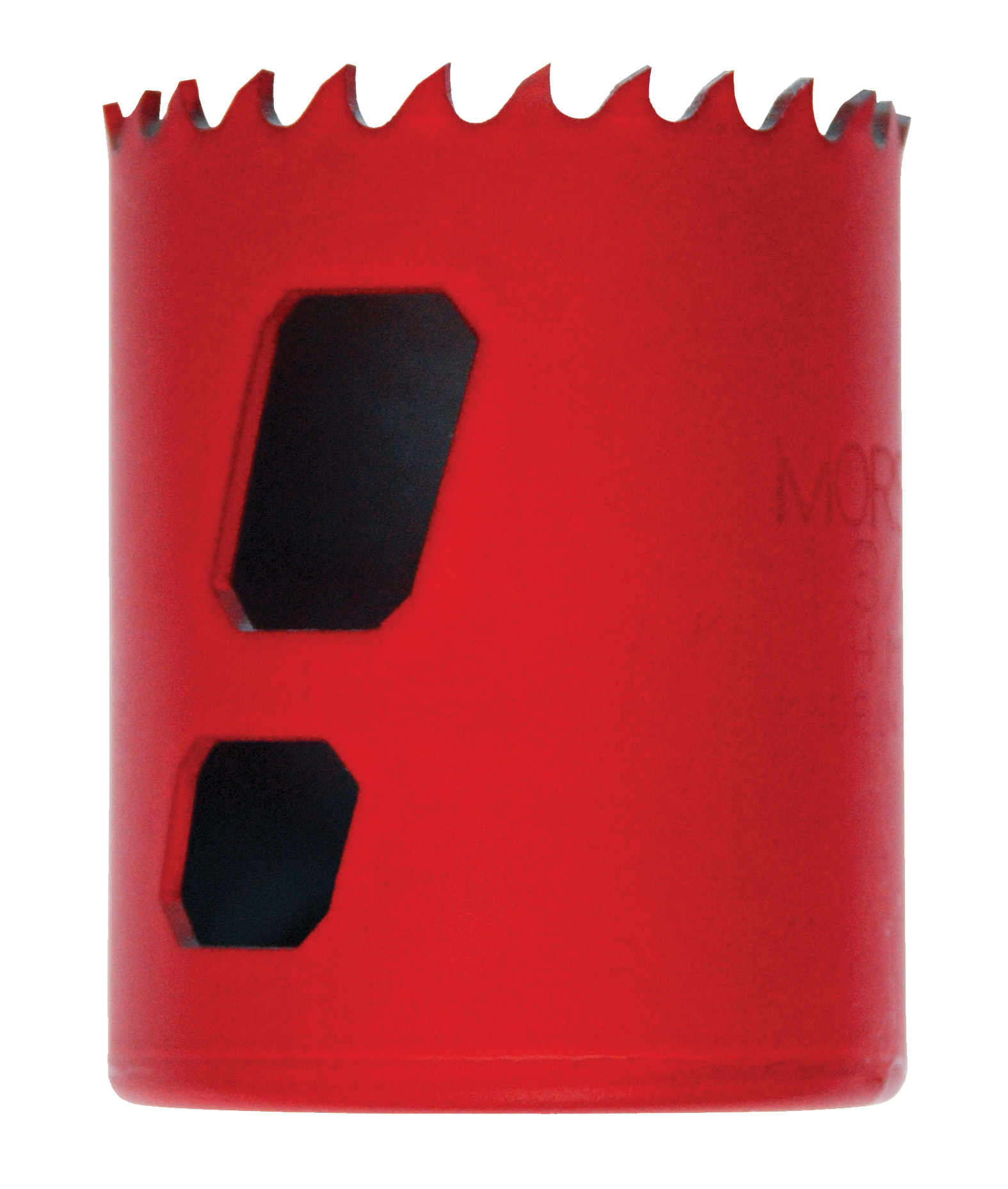

Master Cobalt®

  • Professional quality holesaw
  • M42 HSS cutting edge – 8% Cobalt
  • Electron beam welded to a tough fatigue resistant steel body
  • Positive rake tooth design provides better chip clearance for longer life and easier cutting
  • Fast, long lasting cutting action
  • Threaded cap provides a rigid mounting and is lighter than many other holesaws
  • Variable pitch gives reduced vibration and smoother cuts
  • 49mm (2") maximum cutting depth
  • Supplied individually in hanging packs

Applications

Wood, nail embedded wood, plywood, plastics most machinable metals including stainless steel

Recommendations

Use the recommended speed for each diameter of holesaw.

Use correct cutting fluid where appropriate.

Apply the correct level of pressure when hole cutting, too much or too little will affect cutting life of teeth.

Pilot drills must be correctly assembled depending on material thickness.

Product Code Ref
No.
Diameter
mm
Diameter
Inches
Unit
Qty
Quantity
090-200-005 MHS09 14 9/16 1 Log in or apply for an account
090-200-010 MHS10 16 5/8 1 Log in or apply for an account
090-200-015 MHS11 17 11/16 1 Log in or apply for an account
090-200-020 MHS12 19 3/4 1 Log in or apply for an account
090-200-025 MHS125 20 25/32 1 Log in or apply for an account
090-200-030 MHS13 21 13/16 1 Log in or apply for an account
090-200-035 MHS14 22 7/8 1 Log in or apply for an account
090-200-040 MHS15 24 15/16 1 Log in or apply for an account
090-200-045 MHS16 25 1 1 Log in or apply for an account
090-200-050 MHS17 27 1 1/16 1 Log in or apply for an account
090-200-055 MHS18 29 1 1/8 1 Log in or apply for an account
090-200-060 MHS19 30 1 3/16 1 Log in or apply for an account
090-200-075 MHS20 32 1 1/4 1 Log in or apply for an account
090-200-080 MHS21 33 1 5/16 1 Log in or apply for an account
090-200-085 MHS22 35 1 3/8 1 Log in or apply for an account
090-200-090 MHS23 37 1 7/16 1 Log in or apply for an account
090-200-095 MHS24 38 1 1/2 1 Log in or apply for an account
090-200-100 MHS25 40 1 9/16 1 Log in or apply for an account
090-200-105 MHS26 41 1 5/8 1 Log in or apply for an account
090-200-110 MHS27 43 1 11/16 1 Log in or apply for an account
090-200-115 MHS28 44 1 3/4 1 Log in or apply for an account
090-200-120 MHS285 45 1 25/32 1 Log in or apply for an account
090-200-125 MHS29 46 1 13/16 1 Log in or apply for an account
090-200-130 MHS30 48 1 7/8 1 Log in or apply for an account
090-200-135 MHS315 50 1 15/16 1 Log in or apply for an account
090-200-140 MHS32 51 2 1 Log in or apply for an account
090-200-145 MHS33 52 2 1/16 1 Log in or apply for an account
090-200-150 MHS34 54 2 1/8 1 Log in or apply for an account
090-200-155 MHS36 57 2 1/4 1 Log in or apply for an account
090-200-160 MHS37 59 2 5/16 1 Log in or apply for an account
090-200-165 MHS38 60 2 3/8 1 Log in or apply for an account
090-200-167 MHS385 62 2 7/16 1 Log in or apply for an account
090-200-170 MHS40 64 2 1/2 1 Log in or apply for an account
090-200-175 MHS41 65 2 9/16 1 Log in or apply for an account
090-200-180 MHS42 67 2 5/8 1 Log in or apply for an account
090-200-185 MHS425 68 2 11/16 1 Log in or apply for an account
090-200-195 MHS44 70 2 3/4 1 Log in or apply for an account
090-200-200 MHS46 73 2 7/8 1 Log in or apply for an account
090-200-205 MHS475 75 2 31/32 1 Log in or apply for an account
090-200-210 MHS48 76 3 1 Log in or apply for an account
090-200-215 MHS50 79 3 1/8 1 Log in or apply for an account
090-200-220 MHS52 83 3 1/4 1 Log in or apply for an account
090-200-225 MHS54 86 3 3/8 1 Log in or apply for an account
090-200-230 MHS56 89 3 1/2 1 Log in or apply for an account
090-200-235 MHS58 92 3 5/8 1 Log in or apply for an account
090-200-240 MHS60 95 3 3/4 1 Log in or apply for an account
090-200-245 MHS62 98 3 7/8 1 Log in or apply for an account
090-200-250 MHS63 100 3 15/16 1 Log in or apply for an account
090-200-255 MHS64 102 4 1 Log in or apply for an account
090-200-260 MHS66 105 4 1/8 1 Log in or apply for an account
090-200-265 MHS68 108 4 1/4 1 Log in or apply for an account
090-200-270 MHS70 111 4 3/8 1 Log in or apply for an account
090-200-275 MHS72 114 4 1/2 1 Log in or apply for an account
090-200-280 MHS76 121 4 3/4 1 Log in or apply for an account
090-200-285 MHS80 127 5 1 Log in or apply for an account
090-200-287 MHS84 133 5 1/4 1 Log in or apply for an account
090-200-290 MHS88 140 5 1/2 1 Log in or apply for an account
090-200-295 MHS92 146 5 3/4 1 Log in or apply for an account
090-200-300 MHS96 152 6 1 Log in or apply for an account
090-200-305 MHS104 162 6 3/8 1 Log in or apply for an account


Morse Holesaws - Bulk Packs

Product Code Ref
No.
Diameter
mm
Diameter
Inches
Pack Qty Unit Qty Quantity
090-220-030 MHS125B25 20 25/32 25 1 Log in or apply for an account
090-220-035 MHS16B25 25 1 25 1 Log in or apply for an account
