Sleeve Anchors

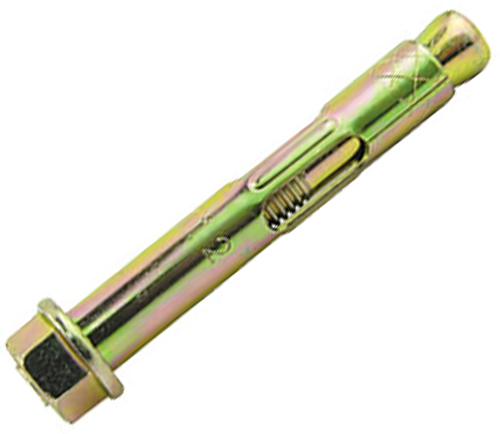

Olympic Hexagon Nut Sleeve Anchors

  • General purpose medium duty anchor for use in concrete, brick and stone
  • A through fixing with thin expansion sleeve for low stress in base material
  • A very versatile anchor
  • Zinc plated and yellow passivated

Applications

Railings, parapets, ducting, light steel works, bracketry, cable trays, timber doors, window frames and satellite dishes.



TDS

Product Code Size mm Hole Size mm Max Fixture Thickness mm Min Hole Depth in Substrate mm Bolt Diameter Min Penetration Depth mm Washered Nut Diameter mm Unit Qty Quantity
125-300-012 8 x 40 8 5 40 M6 35 14 100 Log in or apply for an account
125-300-020 8 x 65 8 30 40 M6 35 14 50 Log in or apply for an account
125-300-036 10 x 50 10 10 45 M8 40 18 50 Log in or apply for an account
125-300-045 10 x 77 10 37 45 M8 40 18 50 Log in or apply for an account
125-300-050 10 x 97 10 57 45 M8 40 18 50 Log in or apply for an account
125-300-060 12 x 75 12 25 55 M10 50 21.5 25 Log in or apply for an account
125-300-065 12 x 99 12 49 55 M10 50 21.5 25 Log in or apply for an account
125-300-072 12 x 129 12 79 55 M10 50 21.5 25 Log in or apply for an account
125-300-082 16 x 111 16 56 65 M12 55 26 10 Log in or apply for an account
125-300-090 16 x 147 16 92 65 M12 55 26 10 Log in or apply for an account
