Tile Drills



Olympic Hard Tile

  • New design and unique P95 precison tip
  • Precision tip is diamond ground from best quality tungsten
  • Asymmetric drill design reduces resistance ensuring that there is no wandering at the start of drilling
  • The unique brazing method ensures no tip loss even in the toughest material
  • Tri-Shank prevents slippage in chuck during use

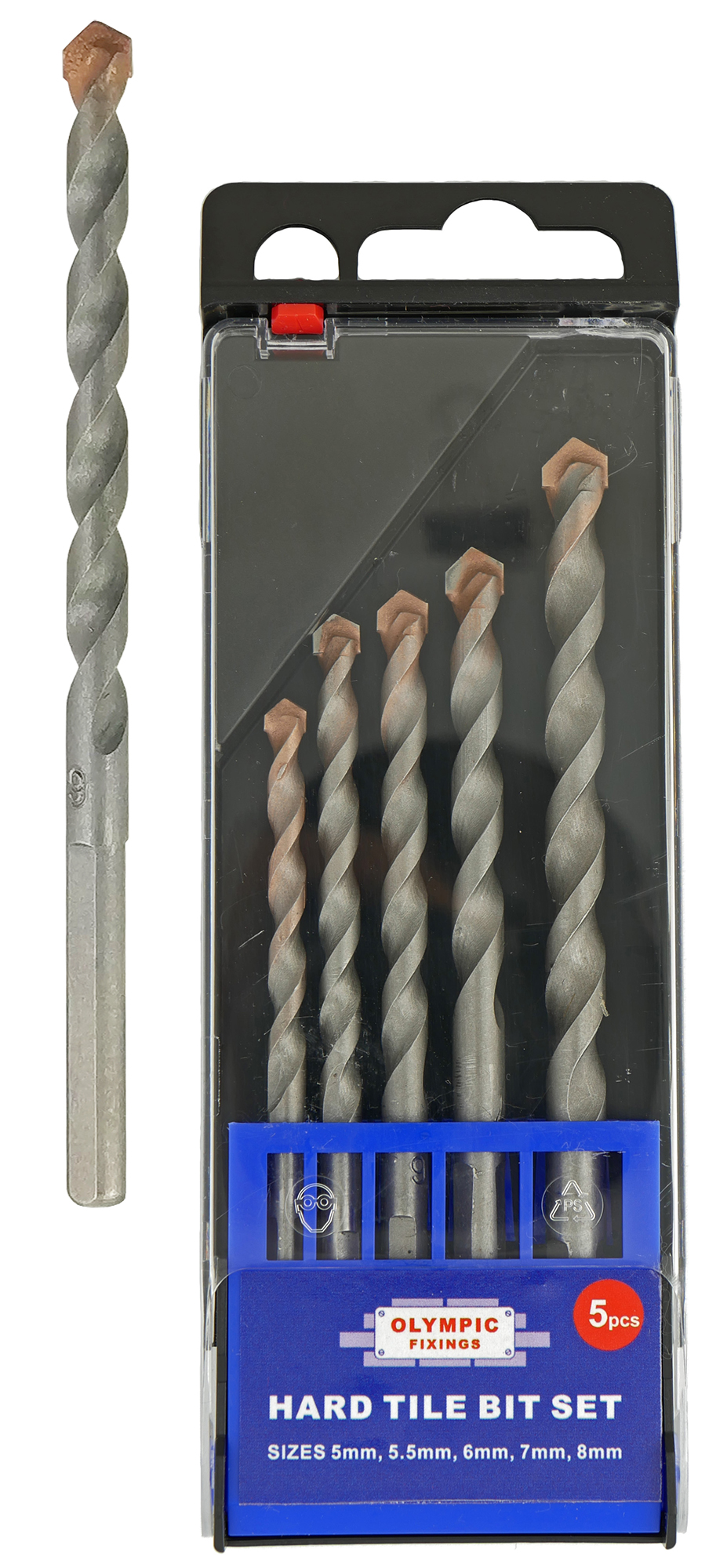

  • Supplied individually on hanging cards or as a 5 piece set in tough plastic hanging case

Applications

For drilling the hardest tiles and materials such as PEI class 5 porcelain, ceramics, fine stoneware, marble, concrete, engineering brick and even granite

Recommendations

The drill bit works best at low revolution speeds.

Drill machines with a variable speed trigger will achieve the best results.

The drill bit should be used on the rotary setting and must not be used on the hammer setting.

Product Code Diameter
mm
Overall
Length mm
Description Unit
Qty
Quantity
033-050-110 5 85 Individual Bit 1 Log in or apply for an account
033-050-120 5.5 100 Individual Bit 1 Log in or apply for an account
033-050-130 6 100 Individual Bit 1 Log in or apply for an account
033-050-140 6.5 100 Individual Bit 1 Log in or apply for an account
033-050-150 7 100 Individual Bit 1 Log in or apply for an account
033-050-160 8 120 Individual Bit 1 Log in or apply for an account
033-050-170 10 120 Individual Bit 1 Log in or apply for an account
033-050-180 5, 5.5, 6, 7, 8 85, 100, 100, 100, 120 5 Piece Set 1 Log in or apply for an account
