Shield Anchors

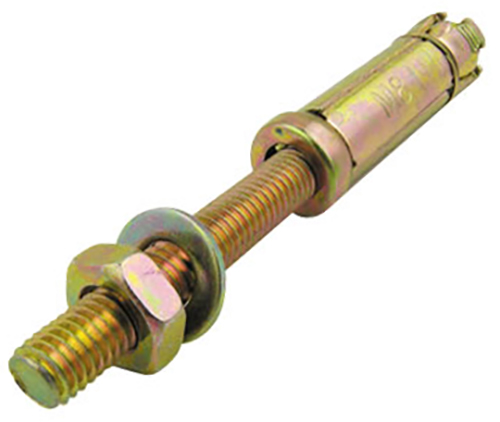

Olympic Projection Bolts

Stud Type

  • Ideal where fixtures have to be placed over the stud, wall fixings, overhead and ceiling work
  • Grade 4.8 stud

Applications

Cable tray, trunking, suspended ceilings, radiators, pipe work, ducting and structural fixings



TDS

Product Code Size mm Thread Diameter Stud Length mm Max Fixture Thickness mm Shield Diameter mm Shield Length mm Hole Size mm Minimum Hole Depth mm Unit Qty Quantity
125-315-005 6 x 10 M6 55 10 10 40 10 50 100 Log in or apply for an account
125-315-010 6 x 25 M6 75 25 10 40 10 50 50 Log in or apply for an account
125-315-017 6 x 60 M6 110 60 10 40 10 50 50 Log in or apply for an account
125-315-019 8 x 10 M8 65 10 14 50 14 60 50 Log in or apply for an account
125-315-023 8 x 25 M8 85 25 14 50 14 60 50 Log in or apply for an account
125-315-025 8 x 40 M8 100 40 14 50 14 60 25 Log in or apply for an account
125-315-027 8 x 60 M8 120 60 14 50 14 60 25 Log in or apply for an account
125-315-030 8 x 80 M8 140 80 14 50 14 60 25 Log in or apply for an account
125-315-036 10 x 15 M10 85 15 16 60 16 70 25 Log in or apply for an account
125-315-040 10 x 30 M10 100 30 16 60 16 70 25 Log in or apply for an account
125-315-046 10 x 60 M10 130 60 16 60 16 70 20 Log in or apply for an account
125-315-055 10 x 80 M10 150 80 16 60 16 70 20 Log in or apply for an account
125-315-060 12 x 15 M12 105 15 20 80 20 90 15 Log in or apply for an account
125-315-066 12 x 30 M12 125 30 20 80 20 90 15 Log in or apply for an account
125-315-070 12 x 50 M12 145 50 20 80 20 90 15 Log in or apply for an account
125-315-076 12 x 75 M12 170 75 20 80 20 90 15 Log in or apply for an account
125-315-078 16 x 15 M16 130 15 25 100 25 110 10 Log in or apply for an account
125-315-085 16 x 35 M16 150 35 25 100 25 110 10 Log in or apply for an account
