Cavity Fixings



Olympic Boardfix Hammer In Plasterboard Fixing

  • A convenient all metal hammer-in cavity fixing used to secure light duty items to plasterboard
  • Zinc plated and yellow passivated to give strong corrosion resistance
  • Each supplied with a 4 x 40mm pozi countersunk screw
  • Finely serrated end point enables the fixing to smoothly pierce dry lining
  • Available boxed or in hanging blister packs



    TDS

Product Code Description Size mm Unit
Qty		 Carton
Qty		 Pack Contains Quantity
055-125-025 Boardfix CSK Blister Pack 11 x 30mm 1 48 25 Log in or apply for an account
055-125-020 Boardfix CSK Box 11 x 30mm 100 2000 Log in or apply for an account

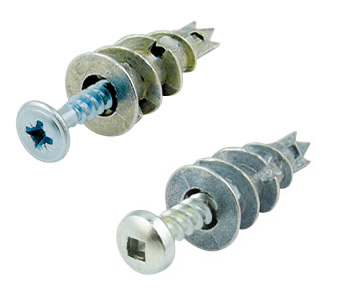

Olympic Metal Self Drives

  • Self drills into plasterboard
  • Fast installation
  • Easy snap-off drill point to permit use where cavity is small or in special applications
  • Pressure cast zinc alloy anchor body
  • Supplied complete with wafer head cross screw or round head square recess screw
  • Available boxed, in tubs or in hanging packs

TDS

Product Code Description Screw Length mm Anchor Length mm Maximum Fixture Thickness mm Unit Qty Carton Qty Quantity
056-105-010 With Wafer Head Cross Screw 35 32 1 - 12 100 2400 Log in or apply for an account
056-105-015 With Round Head Square Recess Screw 32 32 1 - 12 100 2400 Log in or apply for an account


Olympic Metal Self Drives Tubs

  • Tough storage tubs complete with metal self drives and screws
  • Ideal for all trades
  • Keeps fixings safe and clean
  • Available in cartons of 4

TDS

Product Code Description Contents Unit Qty Carton Qty Quantity
242-222-140 With Wafer Head Cross Screw 200 Self drive cavity fixings and
200 fixing screws		 1 4 Log in or apply for an account


Olympic Nylon Self Drive

  • Self drills into plasterboard
  • Fast installation
  • Nylon anchor body
  • Supplied complete with wafer head cross screw
  • Available boxed or in hanging blister packs



TDS

Product Code Screw Length mm Anchor Length mm Maximum Fixture Thickness mm Unit Qty Quantity
056-105-025 27 34 1 - 12 100 Log in or apply for an account


Olympic Spring Toggles

  • All metal cavity fixing
  • Pan head slot screws
  • Heat resistant construction
  • Bright zinc plated steel
  • Spring activated toggle bar
  • Spreads load over a wide area
  • Available boxed or in hanging packs

Applications

Ideal for cavity walls and ceilings. Especially good in lath, plaster and fibre board.



TDS
DoC - Reach

Product Code Size Screw Length mm Hole Size mm Max. Thickness of Base Material & Fixture mm Unit Qty Quantity
055-095-010 M5 x 50 50 14 20 100 Log in or apply for an account
055-095-015 M5 x 75 75 14 45 50 Log in or apply for an account
055-095-020 M5 x 100 100 14 70 50 Log in or apply for an account
055-095-025 M6 x 75 75 18 45 50 Log in or apply for an account


Olympic Cavity Wall Plug

  • Fixes lightweight items to cavity walls
  • Flange and expansion wings grip board
  • Available boxed or in hanging blister packs

Applications

For use in plasterboard and other low strength materials

Product Code Hole Size mm Imperial Screw Gauge Metric Screw mm Unit Qty Quantity
055-120-010 7 8 4 100 Log in or apply for an account


Olympic Brolly Anchors

  • All metal cavity fixing
  • Bright zinc plated steel
  • Heat resistant
  • Maximum strength and wide base for high load capacity
  • Anti rotation design
  • Collapsing legs
  • Screw and fixture can be removed as required
  • Available boxed or in hanging packs

Applications

Ideal for plasterboard, partitions, fibreboard and other soft faced materials



TDS

Product Code Size Anchor Length mm Screw Length mm Screw Diameter mm Hole Size mm Screw Hole Max. Thickness of Unit Base Material mm Unit Qty Quantity
055-100-005 M4 x 22 22 25 4 7 0 - 4 100 Log in or apply for an account
055-100-015 M5 x 37 37 45 5 8 6 - 13 100 Log in or apply for an account
055-100-020 M5 x 53 53 58 5 8 3 - 16 50 Log in or apply for an account
055-100-025 M6 x 37 37 45 6 10 6 - 13 50 Log in or apply for an account
055-100-030 M6 x 53 53 58 6 10 3 - 16 50 Log in or apply for an account


Olympic Brolly Anchor Tool

  • For M4, M5 & M6 sizes of brolly anchors
  • Provides controlled expansion
Product Code Description Unit Qty Quantity
055-100-100 Brolly anchor tool 1 Log in or apply for an account


Olympic Brolly Anchor Tool Kit

  • Brolly anchor tool with a range of popular brolly fixings
Product Code Description Contents Unit Qty Carton Qty Quantity
055-100-110 Brolly anchor tool kit 1 Brolly anchor tool
22 M4 x 38 Brolly anchors
16 M5 x 37 Brolly anchors
16 M5 x 53 Brolly anchors		 1 12 Log in or apply for an account


Olympic Plastic Toggles

  • Hollow wall fixing for use with woodscrews or self tapping screws
  • Anchor stays in place if screw is removed
  • Manufactured with anti rotation lugs and fins

Applications

Ideal for partition walls and plasterboard.

Can also be used in solid materials.

Product Code Hole Size mm Imperial Screw Gauge Metric Screw mm Min. Cavity Depth mm Wall Thickness Range mm Unit Qty Quantity
055-110-010 8 6 - 8 3.5 - 4 30 6 - 10 100 Log in or apply for an account


Olympic Blister Packs

  • Supplied in hanging blister packs
Product Code Description Blister Qty Unit Qty Carton Qty Quantity
056-105-030 Nylon self drive 15 1 20 Log in or apply for an account
055-120-005 Cavity wall plug 40 1 20 Log in or apply for an account


Olympic Hanging Packs

  • Supplied in poly bags with hanging header card



TDS - Brolly Anchors

TDS - Spring Toggles


DoC - Reach

Product Code Description Bag Qty Unit Qty Carton Qty Quantity
055-095-012 M5 x 50 Spring toggle 10 1 10 Log in or apply for an account
055-095-017 M5 x 75 Spring toggle 10 1 10 Log in or apply for an account
055-095-026 M6 x 75 Spring toggle 10 1 10 Log in or apply for an account
055-100-017 M5 x 37 Brolly anchor 10 1 10 Log in or apply for an account
055-100-022 M5 x 53 Brolly anchor 10 1 10 Log in or apply for an account
055-100-031 M6 x 53 Brolly anchor 10 1 10 Log in or apply for an account
056-105-040 With Wafer Head Cross Screw 15 1 10 Log in or apply for an account
