Self Tapping Screws



Olympic Pan Head Pozi & Cross

  • Bright zinc plated hardened steel
  • Type C (formerly AB)
  • Ideal for use in thin sheet metal, brass, aluminium, plastic and fibre glass
  • Used extensively in spring steel nut and clip applications
  • Self tappers have the ability to form or tap their own threads into the mating material

DIN 7981



TDS

Product Code Screw Gauge Length Inches Unit Qty Quantity
195-460-010 4 1/4 200 Log in or apply for an account
195-460-025 4 1/2 200 Log in or apply for an account
195-460-035 4 3/4 200 Log in or apply for an account
195-460-060 6 1/2 200 Log in or apply for an account
195-460-065 6 5/8 200 Log in or apply for an account
195-460-070 6 3/4 200 Log in or apply for an account
195-460-080 6 1 200 Log in or apply for an account
195-460-085 6 1 1/4 200 Log in or apply for an account
195-460-090 6 1 1/2 200 Log in or apply for an account
195-460-095 8 3/8 200 Log in or apply for an account
195-460-100 8 1/2 200 Log in or apply for an account
195-460-105 8 5/8 200 Log in or apply for an account
195-460-110 8 3/4 200 Log in or apply for an account
195-460-115 8 1 200 Log in or apply for an account
195-460-120 8 1 1/4 200 Log in or apply for an account
195-460-125 8 1 1/2 200 Log in or apply for an account
195-460-135 8 2 200 Log in or apply for an account
195-460-145 10 1/2 200 Log in or apply for an account
195-460-155 10 3/4 200 Log in or apply for an account
195-460-160 10 1 200 Log in or apply for an account
195-460-165 10 1 1/4 200 Log in or apply for an account
195-460-170 10 1 1/2 200 Log in or apply for an account
195-460-180 10 2 200 Log in or apply for an account
195-460-185 12 1/2 200 Log in or apply for an account
195-460-195 12 3/4 200 Log in or apply for an account
195-460-200 12 1 200 Log in or apply for an account
195-460-210 12 1 1/2 200 Log in or apply for an account


Olympic Pan Head Self Tapping Screws Tubs

  • Tough storage tubs complete with pan head cross recess self tapping screws
  • Ideal for all trades
  • Keeps fixings safe and clean
  • Available in cartons of 8



TDS

Product Code Description Contents Unit Qty Carton Qty Quantity
242-222-260 Pan head cross self tapping screws 200 8 x 1/2”, 100 8 x 3/4”
50 8 x 1”, 50 8 x 1 1/2”		 1 8 Log in or apply for an account

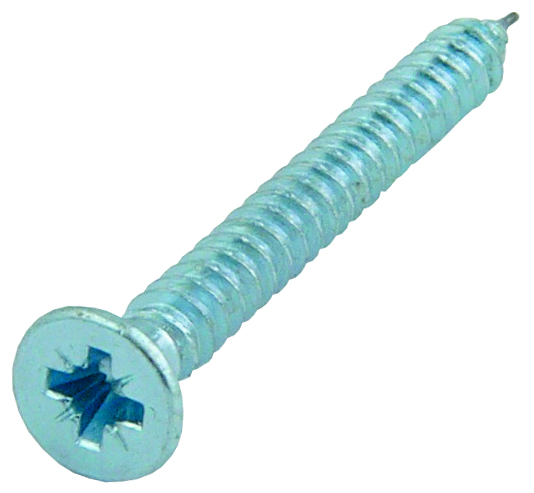

Olympic Countersunk Pozi & Cross

  • Bright zinc plated hardened steel
  • Type C (formerly AB)
  • Ideal for use in thin sheet metal, brass, aluminium, plastic and fibre glass
  • Used extensively in spring steel nut and clip applications
  • Self tappers have the ability to form or tap their own threads into the mating material

DIN 7982



TDS

Product Code Screw Gauge Length Inches Unit Qty Quantity
195-327-030 4 5/8 200 Log in or apply for an account
195-327-060 6 1/2 200 Log in or apply for an account
195-327-070 6 3/4 200 Log in or apply for an account
195-327-080 6 1 200 Log in or apply for an account
195-327-100 8 1/2 200 Log in or apply for an account
195-327-110 8 3/4 200 Log in or apply for an account
195-327-115 8 1 200 Log in or apply for an account
195-327-120 8 1 1/4 200 Log in or apply for an account
195-327-125 8 1 1/2 200 Log in or apply for an account
195-327-135 8 2 200 Log in or apply for an account
195-327-155 10 3/4 200 Log in or apply for an account
195-327-160 10 1 200 Log in or apply for an account
195-327-165 10 1 1/4 200 Log in or apply for an account
195-327-170 10 1 1/2 200 Log in or apply for an account
195-327-180 10 2 200 Log in or apply for an account


Olympic Countersunk Pozi & Cross Self Tapping Screws Tubs

  • Tough storage tubs complete with countersunk head cross recess self tapping screws
  • Ideal for all trades
  • Keeps fixings safe and clean
  • Available as individual tubs or cartons of 8



TDS

Product Code Description Contents Unit Qty Carton Qty Quantity
242-222-270 CSK head cross self tapping screws 200 8 x 1/2", 100 8 x 3/4"
50 8 x 1", 50 8 x 1 1/2"		 1 8 Log in or apply for an account


Olympic Button Head Torx Pin Security Screws Hanging Packs

6 Lobe Pin, Star Drive Pin

  • A2 (Grade 304) stainless steel
  • Type C (formerly AB)
  • Offers protection against opportunistic theft and vandalism
  • Install with the correct size Torx pin bit, can be removed and reused
  • Ideal for use in thin sheet metal, brass, aluminium, plastic and fibre glass
  • Self tappers have the ability to form or tap their own threads into the mating material
  • Supplied in poly bags with hanging header card
Product Code Screw Gauge
(metric equiv mm)		 Length
Inches		 Length
mm		 Driver
Size		 Bag
Qty		 Unit
Qty		 Quantity
195-450-011 4 (2.9) 1/2 13 T10 10 1 Log in or apply for an account
195-450-016 6 (3.5) 1/2 13 T10 10 1 Log in or apply for an account
195-450-021 6 (3.5) 3/4 19 T10 10 1 Log in or apply for an account


Olympic Countersunk Torx Pin Security Screws Hanging Packs

6 Lobe Pin, Star Drive Pin

  • A2 (Grade 304) stainless steel
  • Type C (formerly AB)
  • Offers protection against opportunistic theft and vandalism
  • Install with the correct size Torx pin bit, can be removed and reused
  • Ideal for use in thin sheet metal, brass, aluminium, plastic and fibre glass
  • Self tappers have the ability to form or tap their own threads into the mating material
  • Supplied in poly bags with hanging header card
Product Code Screw Gauge
(metric equiv mm)		 Length
Inches		 Length
mm		 Driver
Size		 Bag
Qty		 Unit
Qty		 Quantity
195-450-026 8 (4.2) 1 25 T20 10 1 Log in or apply for an account
195-450-031 8 (4.2) 1 1/4 32 T20 10 1 Log in or apply for an account
195-450-036 8 (4.2) 1 1/2 38 T20 10 1 Log in or apply for an account
195-450-041 8 (4.2) 2 50 T20 10 1 Log in or apply for an account
195-450-046 10 (4.8) 1 25 T25 10 1 Log in or apply for an account
195-450-051 10 (4.8) 1 1/4 32 T25 10 1 Log in or apply for an account
195-450-056 10 (4.8) 1 1/2 35 T25 10 1 Log in or apply for an account
195-450-061 10 (4.8) 2 50 T25 10 1 Log in or apply for an account

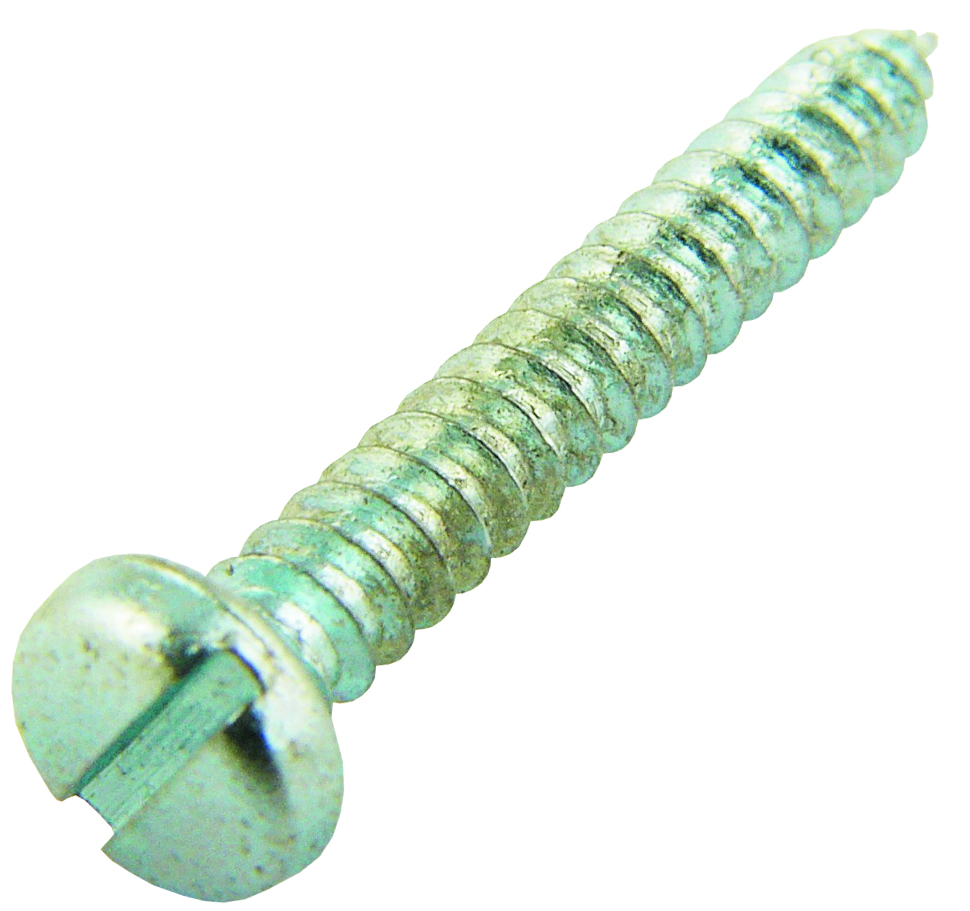

Olympic Pan Head Slot

  • Bright zinc plated hardened steel
  • Type C (formerly AB)
  • Ideal for use in thin sheet metal, brass, aluminium, plastic and fibre glass
  • Used extensively in spring steel nut and clip applications
  • Self tappers have the ability to form or tap their own threads into the mating material

DIN 7971



TDS

Product Code Screw Gauge Length Inches Unit Qty Quantity
195-455-035 4 3/4 200 Log in or apply for an account
195-455-070 6 3/4 200 Log in or apply for an account
195-455-100 8 1/2 200 Log in or apply for an account
195-455-110 8 3/4 200 Log in or apply for an account
195-455-115 8 1 200 Log in or apply for an account
195-455-120 8 1 1/4 200 Log in or apply for an account
195-455-145 10 1/2 200 Log in or apply for an account
195-455-195 12 3/4 200 Log in or apply for an account


Olympic Roundhead Square-Lok



TDS

Product Code Screw Gauge Length Inches Unit Qty Quantity
220-375-040 6 1/2 200 Log in or apply for an account
220-375-095 8 1/2 200 Log in or apply for an account
220-375-105 8 3/4 200 Log in or apply for an account
220-375-160 10 3/4 200 Log in or apply for an account
