Tile Drills

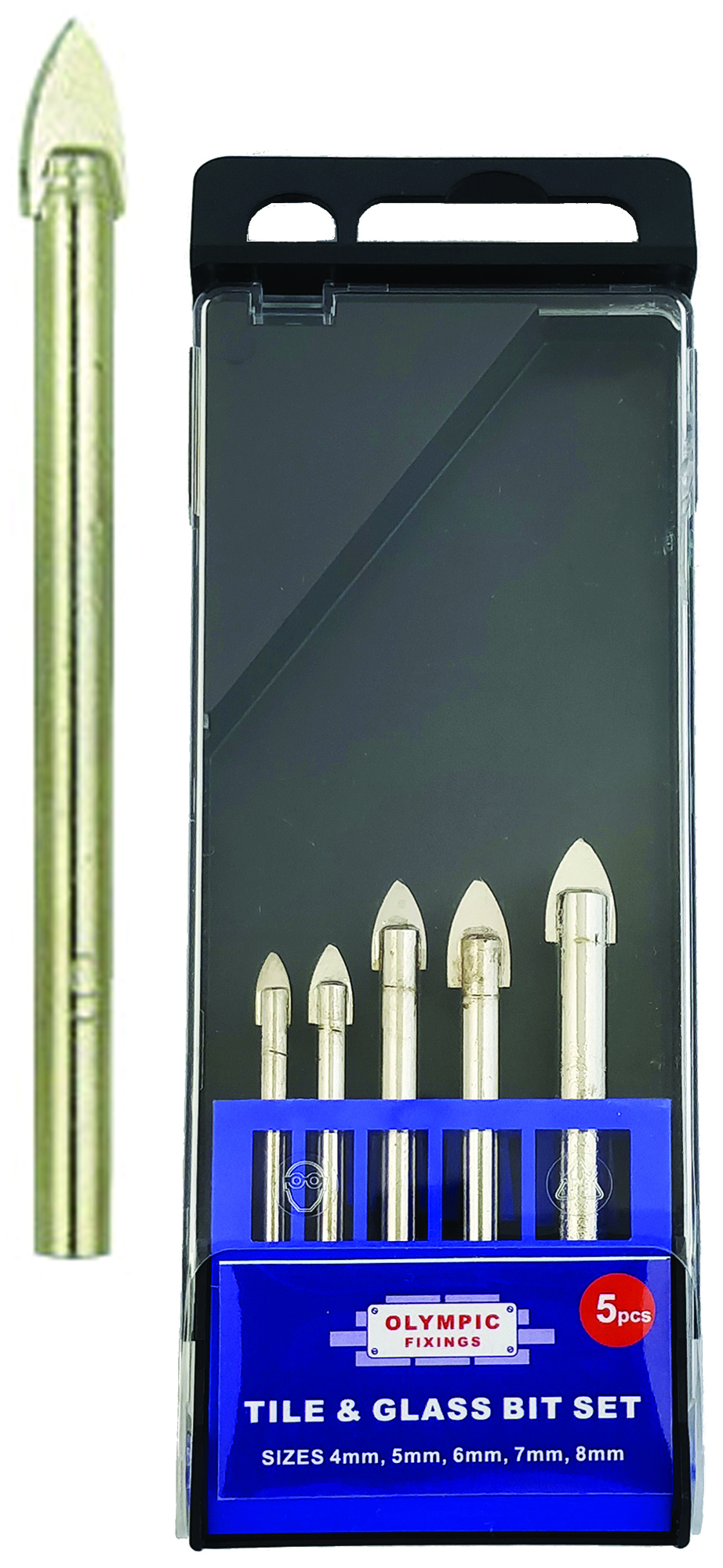

Olympic Tile & Glass

  • Fluteless straight shank drill bit that incorporates a purpose designed spear-point carbide tip
  • Tip geometry enables quick and easy start up with a reduction of wandering
  • When drilling it is important that a very slow drilling speed is used
  • Supplied individually in hanging wallets or as a 5 piece set in tough plastic hanging case

Applications

Ideal for ceramics, glass, tiles, mirrors, windows etc.

Recommendations

The drill bit should be used on the rotary setting and must not be used on the hammer setting.

Product Code Diameter
mm
Body
Diameter mm
Overall
Length mm
Description Unit
Qty
Quantity
033-050-010 3 3 60 Individual Bit 1 Log in or apply for an account
033-050-020 4 4 60 Individual Bit 1 Log in or apply for an account
033-050-030 5 4.6 70 Individual Bit 1 Log in or apply for an account
033-050-040 6 4.6 75 Individual Bit 1 Log in or apply for an account
033-050-045 7 4.8 80 Individual Bit 1 Log in or apply for an account
033-050-050 8 5.3 80 Individual Bit 1 Log in or apply for an account
033-050-060 10 6.3 100 Individual Bit 1 Log in or apply for an account
033-050-080 4, 5, 6, 7, 8 4, 4.6, 4.6, 4.8, 5.3 60, 70, 75, 80, 80 5 Piece Set 1 Log in or apply for an account


Olympic Hard Tile

  • New design and unique P95 precison tip
  • Precision tip is diamond ground from best quality tungsten
  • Asymmetric drill design reduces resistance ensuring that there is no wandering at the start of drilling
  • The unique brazing method ensures no tip loss even in the toughest material
  • Tri-Shank prevents slippage in chuck during use
  • Supplied individually on hanging cards or as a 5 piece set in tough plastic hanging case

Applications

For drilling the hardest tiles and materials such as PEI class 5 porcelain, ceramics, fine stoneware, marble, concrete, engineering brick and even granite

Recommendations

The drill bit works best at low revolution speeds.

Drill machines with a variable speed trigger will achieve the best results.

The drill bit should be used on the rotary setting and must not be used on the hammer setting.

Product Code Diameter
mm
Overall
Length mm
Description Unit
Qty
Quantity
033-050-110 5 85 Individual Bit 1 Log in or apply for an account
033-050-120 5.5 100 Individual Bit 1 Log in or apply for an account
033-050-130 6 100 Individual Bit 1 Log in or apply for an account
033-050-140 6.5 100 Individual Bit 1 Log in or apply for an account
033-050-150 7 100 Individual Bit 1 Log in or apply for an account
033-050-160 8 120 Individual Bit 1 Log in or apply for an account
033-050-170 10 120 Individual Bit 1 Log in or apply for an account
033-050-180 5, 5.5, 6, 7, 8 85, 100, 100, 100, 120 5 Piece Set 1 Log in or apply for an account


Olympic Diamond Tipped Tile

  • Vacuum brazed diamond tipped tile drills
  • Diamond tip gives a smooth hole finish with reduced break out
  • Wax filled for automatic lubrication & cooling
  • Maximum performance per cut
  • No water required
  • Hexagon shank
  • Supplied individually in hanging blister packs or as a 5 piece set in tough telescopic hanging case

Applications

Drilling the hardest man made materials including porcelain, ceramics, stone, marble and granite.

Recommendations

Full instructions included with each drill.

Best performance with corded mains powered drilling machine at highest speed with hammer action turned off.

Excessive pressure not required, the drill will perform better if allowed to run with light load at full speed.

Product Code Diameter
mm
Max. Drilling
Depth mm
Overall
Length mm
Description Unit
Qty
Quantity
033-100-005 5 27 70 Individual Bit 1 Log in or apply for an account
033-100-010 6 27 70 Individual Bit 1 Log in or apply for an account
033-100-020 7 27 70 Individual Bit 1 Log in or apply for an account
033-100-030 8 27 80 Individual Bit 1 Log in or apply for an account
033-100-040 10 27 80 Individual Bit 1 Log in or apply for an account
033-100-050 12 27 80 Individual Bit 1 Log in or apply for an account
033-100-060 15 27 80 Individual Bit 1 Log in or apply for an account
033-100-100 5, 6, 7, 8, 10 27 70, 70, 70, 80, 80 5 Piece Set 1 Log in or apply for an account
