Hammer & Frame Fixings

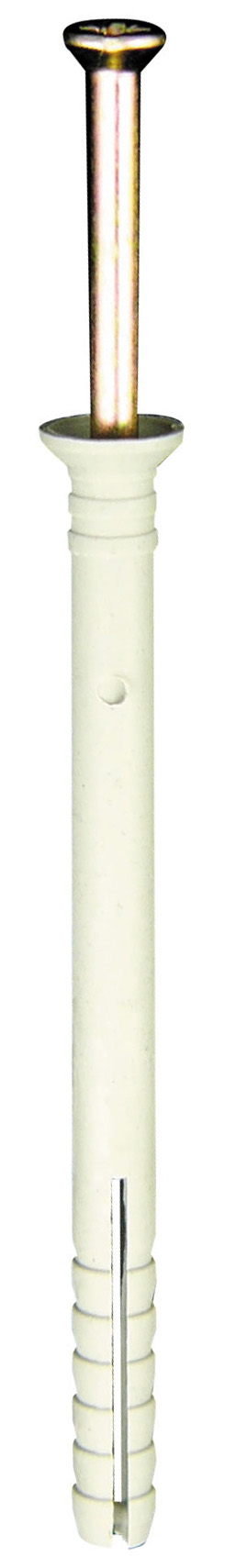

Olympic Hammer In Fixings

  • Through fixing for rapid installation
  • Nylon countersunk plug (Polyamide 6)
  • Steel cross head screw nail
  • Bright zinc plated & yellow passivated
  • For internal and external use
  • Easy hammer drive fully expands nylon sleeve
  • Strong grip in solid materials

Applications

Suitable for timber skirting boards, battens, cupboards, electrical fittings, plumbing fittings and radiators, brick ties, signs etc.

Ideal fixing in most materials including concrete, stone, perforated brick and low density block.

Product Code Plug Size Drill Hole Diameter mm Min. Hole Depth mm Plug Length mm Screwdriver Bit Size Max Fixture Thickness mm Unit Qty Quantity
070-140-015 5 x 40 5 30 40 2 15 200 Log in or apply for an account
070-140-024 6 x 40 6 35 40 2 15 200 Log in or apply for an account
070-140-035 6 x 60 6 35 60 2 35 200 Log in or apply for an account
070-140-038 6 x 80 6 35 80 2 50 200 Log in or apply for an account
070-140-040 8 x 60 8 50 60 3 20 100 Log in or apply for an account
070-140-045 8 x 80 8 50 80 3 40 100 Log in or apply for an account
070-140-050 8 x 100 8 50 100 3 60 100 Log in or apply for an account
070-140-055 8 x 120 8 50 120 3 80 100 Log in or apply for an account
070-140-070 10 x 100 10 60 100 3 60 50 Log in or apply for an account
070-140-075 10 x 120 10 60 120 3 80 50 Log in or apply for an account
070-140-080 10 x 135 10 60 135 3 95 50 Log in or apply for an account
070-140-085 10 x 160 10 60 160 3 115 50 Log in or apply for an account

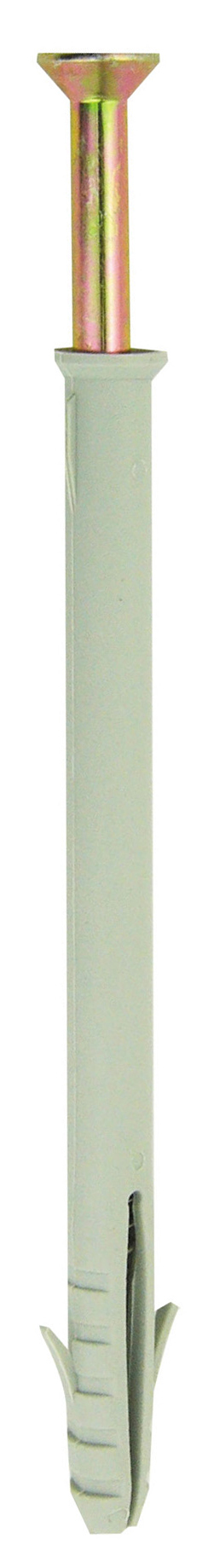

Olympic Frame Fixings

  • Through fixing for rapid installation
  • Nylon countersunk plug (Polyamide 6)
  • Steel cross head screw
  • Bright zinc plated & yellow passivated
  • For internal and external use
  • Fitted with anti rotation barbs

Applications

Suitable for fixing window frames, metal fittings, wooden battens.

Ideal fixing in most materials including concrete, stone, perforated brick and low density block.

Product Code Plug Size Drill Hole Diameter mm Min. Hole Depth mm Plug Length mm Screwdriver Bit Size Max. Fixture Thickness mm Unit Qty Quantity
071-145-005 8 x 60 8 50 60 3 20 100 Log in or apply for an account
071-145-010 8 x 80 8 50 80 3 40 100 Log in or apply for an account
071-145-015 8 x 100 8 50 100 3 60 100 Log in or apply for an account
071-145-020 8 x 120 8 50 120 3 80 100 Log in or apply for an account
071-145-025 8 x 140 8 50 140 3 100 50 Log in or apply for an account
071-145-035 10 x 80 10 60 80 3 40 50 Log in or apply for an account
071-145-040 10 x 100 10 60 100 3 60 50 Log in or apply for an account
071-145-045 10 x 120 10 60 120 3 80 50 Log in or apply for an account
071-145-050 10 x 140 10 60 140 3 100 50 Log in or apply for an account
071-145-055 10 x 160 10 60 160 3 115 50 Log in or apply for an account
