Shield Anchors

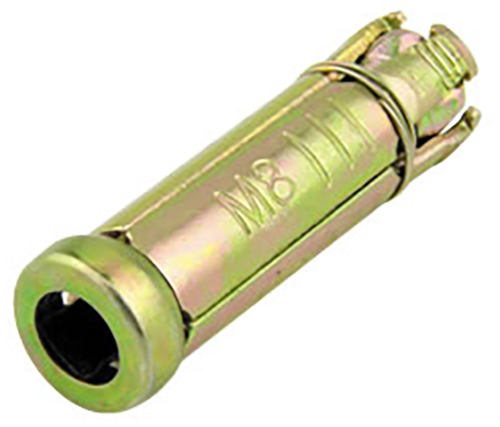

Olympic Shields

Applications

Ideal for use with threaded rod and bolts.

For applications where the bolt size is determined by the user.



TDS

Product Code Size Thread Diameter mm Shield Diameter mm Shield Length mm Hole Size mm Minimum Hole Depth mm Unit Qty Quantity
125-309-005 M6 M6 10 40 10 50 100 Log in or apply for an account
125-309-010 M8 M8 14 50 14 60 100 Log in or apply for an account
125-309-015 M10 M10 16 60 16 70 50 Log in or apply for an account
125-309-020 M12 M12 20 80 20 90 25 Log in or apply for an account


Olympic Hook Bolts

  • Ideal where a secure anchor is required for hanging applications
  • Formed wire

Applications

For suspension of cable, wire, rope, chain etc.



TDS

Product Code Size Thread Length mm Total Length mm External Hook Diameter mm Internal Hook Diameter mm Shield Diameter mm/Hole Size mm Shield Length mm Minimum Hole Depth mm Unit Qty Quantity
125-316-005 H6 50 75 21 10 10 40 50 50 Log in or apply for an account
125-316-010 H8 65 100 28 13 14 50 60 25 Log in or apply for an account
125-316-015 H10 75 110 32 14 16 60 70 20 Log in or apply for an account
125-316-020 H12 85 134 44 22.5 20 80 90 15 Log in or apply for an account


Olympic Eye Bolts

  • Ideal where a secure anchor is required for hanging applications
  • Formed wire

Applications

For suspension of cable, wire, rope, chain etc.



TDS

Product Code Size Thread Length mm Total Length mm External Hook Diameter mm Internal Hook Diameter mm Shield Diameter mm/Hole Size mm Shield Length mm Minimum Hole Depth mm Unit Qty Quantity
125-317-005 E6 50 75 20 10 10 40 50 50 Log in or apply for an account
125-317-010 E8 65 100 26 13 14 50 60 25 Log in or apply for an account
125-317-015 E10 75 110 31 14 16 60 70 20 Log in or apply for an account
125-317-020 E12 85 140 43 22.5 20 80 90 10 Log in or apply for an account


Olympic Loose Bolts

Bolt Type

  • Ideal for floor fixing, when after inserting the shield in the hole, objects have to be slid into place
  • Grade 4.8 bolt

Applications

Holding down anchors for machinery, seating, switchgear, racking & structural fixings.



TDS

Product Code Size mm Thread Diameter Bolt Length mm Max Fixture Thickness mm Shield Diameter mm Shield Length mm Hole Size mm Minimum Hole Depth mm Unit Qty Quantity
125-310-005 6 x 10 M6 50 10 10 40 10 50 100 Log in or apply for an account
125-310-010 6 x 25 M6 65 25 10 40 10 50 50 Log in or apply for an account
125-310-015 6 x 40 M6 80 40 10 40 10 50 50 Log in or apply for an account
125-310-020 8 x 10 M8 60 10 14 50 14 60 50 Log in or apply for an account
125-310-025 8 x 25 M8 75 25 14 50 14 60 25 Log in or apply for an account
125-310-030 8 x 40 M8 90 40 14 50 14 60 25 Log in or apply for an account
125-310-035 10 x 10 M10 70 10 16 60 16 70 25 Log in or apply for an account
125-310-040 10 x 25 M10 90 25 16 60 16 70 25 Log in or apply for an account
125-310-045 10 x 50 M10 110 50 16 60 16 70 25 Log in or apply for an account
125-310-050 10 x 75 M10 140 75 16 60 16 70 25 Log in or apply for an account
125-310-055 12 x 10 M12 90 10 20 80 20 90 20 Log in or apply for an account
125-310-060 12 x 25 M12 110 25 20 80 20 90 15 Log in or apply for an account
125-310-065 12 x 40 M12 120 40 20 80 20 90 15 Log in or apply for an account
125-310-070 12 x 60 M12 140 60 20 80 20 90 15 Log in or apply for an account


Olympic Projection Bolts

Stud Type

  • Ideal where fixtures have to be placed over the stud, wall fixings, overhead and ceiling work
  • Grade 4.8 stud

Applications

Cable tray, trunking, suspended ceilings, radiators, pipe work, ducting and structural fixings



TDS

Product Code Size mm Thread Diameter Stud Length mm Max Fixture Thickness mm Shield Diameter mm Shield Length mm Hole Size mm Minimum Hole Depth mm Unit Qty Quantity
125-315-005 6 x 10 M6 55 10 10 40 10 50 100 Log in or apply for an account
125-315-010 6 x 25 M6 75 25 10 40 10 50 50 Log in or apply for an account
125-315-017 6 x 60 M6 110 60 10 40 10 50 50 Log in or apply for an account
125-315-019 8 x 10 M8 65 10 14 50 14 60 50 Log in or apply for an account
125-315-023 8 x 25 M8 85 25 14 50 14 60 50 Log in or apply for an account
125-315-025 8 x 40 M8 100 40 14 50 14 60 25 Log in or apply for an account
125-315-027 8 x 60 M8 120 60 14 50 14 60 25 Log in or apply for an account
125-315-030 8 x 80 M8 140 80 14 50 14 60 25 Log in or apply for an account
125-315-036 10 x 15 M10 85 15 16 60 16 70 25 Log in or apply for an account
125-315-040 10 x 30 M10 100 30 16 60 16 70 25 Log in or apply for an account
125-315-046 10 x 60 M10 130 60 16 60 16 70 20 Log in or apply for an account
125-315-055 10 x 80 M10 150 80 16 60 16 70 20 Log in or apply for an account
125-315-060 12 x 15 M12 105 15 20 80 20 90 15 Log in or apply for an account
125-315-066 12 x 30 M12 125 30 20 80 20 90 15 Log in or apply for an account
125-315-070 12 x 50 M12 145 50 20 80 20 90 15 Log in or apply for an account
125-315-076 12 x 75 M12 170 75 20 80 20 90 15 Log in or apply for an account
125-315-085 16 x 35 M16 150 35 25 100 25 110 10 Log in or apply for an account
