Chemical Anchors



Olympic Resin Anchors

  • A rapid curing, two part, styrene free polyester resin chemical anchoring system
  • High performance in concrete, masonry, brickwork, stone and aerated block
  • Supplied with mixer nozzle

Applications

Ideal for setting bolts, rods, studs, wall ties etc. into a wide range of structures.

Technical Information

Threaded rod size M8 M10 M12 M16 M20 M24
Hole diameter mm 10 12 14 18 24 26
Hole depth mm 80 90 110 125 170 210
Minimium base material thickness mm 110 120 140 170 230 270
Minimum fixing spacing mm 80 90 110 125 170 210
Minimum fixing to edge distance mm 120 135 165 190 255 315
Maximum recommended tension load in non-cracked 8.5 10.5 14.4 16.6 28.9 31.3
concrete 25n/mm² with grade 8.8 steel studding kN

Curing and Loading Time

Temperature Minimum Setting Time mins. Minimum Time Before Loading mins.
+30°C 3-5 25
+20°C 5-7 45
+10°C 12-15 80
+5°C 20-25 120



SDS
TDS

DoP CE

DoP UKCA



Product Code Cartridge Size Unit Qty Carton Qty Quantity
238-100-015 300ml 1 10 Log in or apply for an account
238-100-025 400ml 1 12 Log in or apply for an account

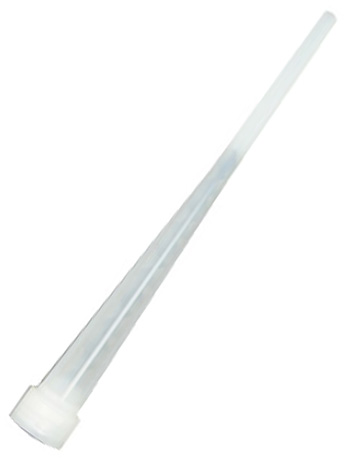

Olympic Spare Mixer Nozzle

  • Nozzle suitable for both sizes of cartridges
Product Code Description Unit Qty Carton Qty Quantity
238-100-110 Mixer nozzle 1 12 Log in or apply for an account

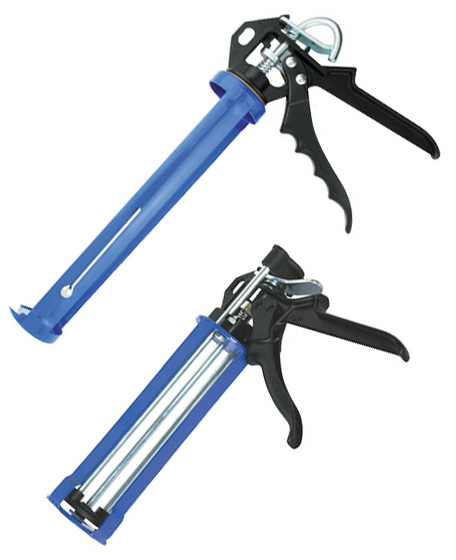

Olympic Cartridge Guns

238-503-011 - Cartridge Gun Deluxe

  • Blue colour
  • Length 11 1/2" (290mm)
  • Round rod with hooked end
  • Swivel action barrel
  • For cartridges to 380ml

238-200-200 - Cartridge Gun Chemical

  • Blue colour
  • Length 8 1/2" (220mm)
  • Double rod application
  • Swivel action barrel
  • Heavy duty
  • For use with 400ml resin cartridges
Product Code Description Unit Qty Carton Qty Quantity
238-503-011 300ml Gun - blue 11.5” (290mm) length 1 12 Log in or apply for an account
238-200-200 400ml Gun - blue 8.5” (220mm) length 1 12 Log in or apply for an account
