Self Drilling Screws

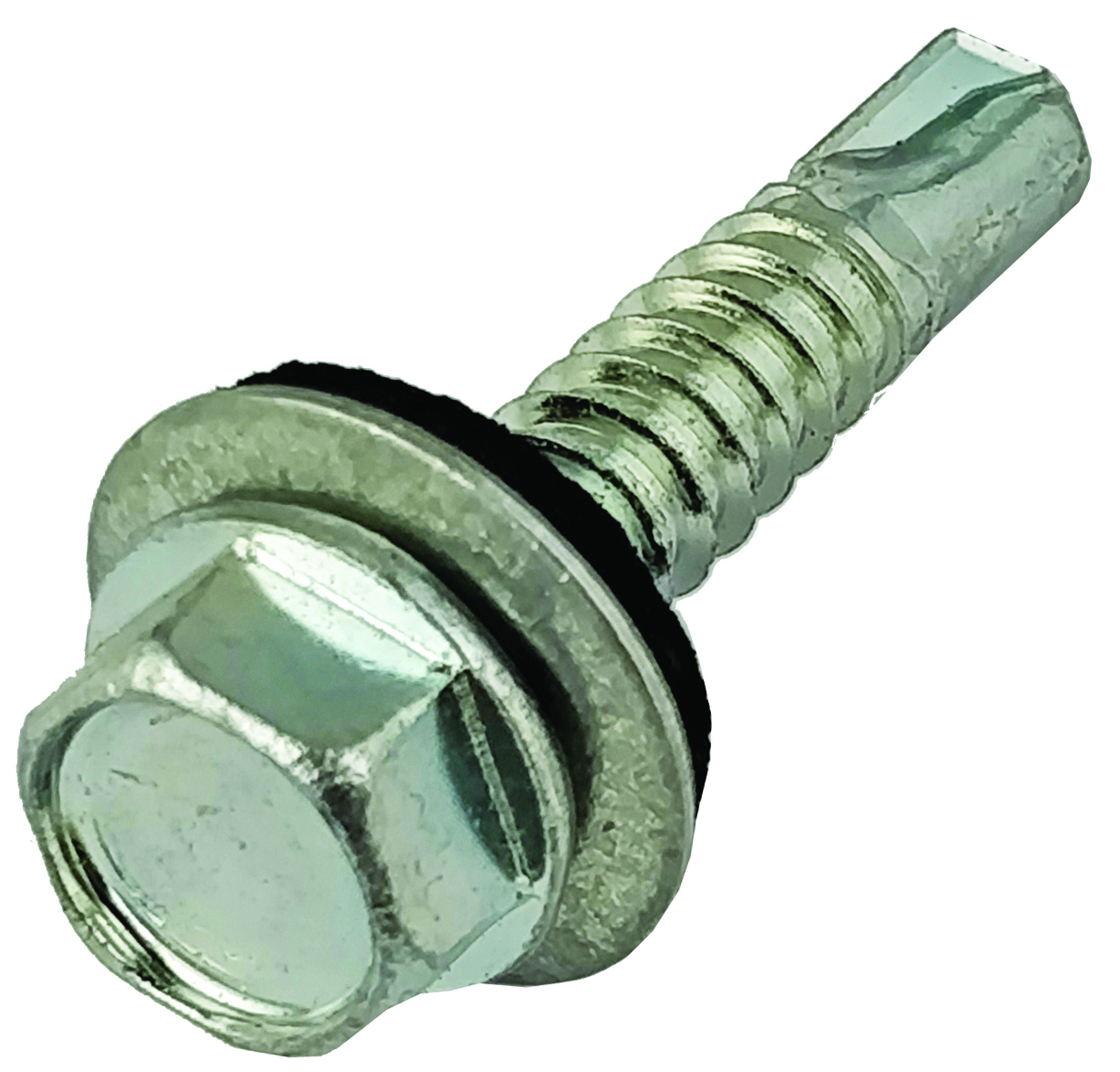

Olympic Hexagon Head Washered Drillers

Steel To Steel

  • Manufactured to DIN 7504K
  • C1022 case hardened carbon steel
  • Hexagon flange head
  • Bright zinc plated
  • Light and heavy section types available to suit different steel thicknesses
  • Assembled with EPDM galvanised steel washer
  • Washer acts as insulation between substrate and fixture and also acts as a weatherseal
  • Ideal for fixing cladding and corrugated sheet metal to steel construction

TDS

Product Code Type Diameter mm Length mm Washer Diameter mm Steel Thickness mm A/F Dimension mm Unit Qty Quantity
200-110-005 Light Section 4.2 13 14 1.2 - 3 7 200 Log in or apply for an account
200-110-010 Light Section 4.8 16 14 1.2 - 3.5 8 200 Log in or apply for an account
200-110-015 Light Section 4.8 19 14 1.2 - 3.5 8 200 Log in or apply for an account
200-110-017 Light Section 4.8 25 14 1.2 - 3.5 8 200 Log in or apply for an account
200-110-020 Light Section 5.5 22 16 1.2 - 3.5 8 200 Log in or apply for an account
200-110-025 Light Section 5.5 25 16 1.2 - 3.5 8 200 Log in or apply for an account
200-110-027 Light Section 5.5 32 16 1.2 - 3.5 8 100 Log in or apply for an account
200-110-028 Light Section 5.5 38 16 1.2 - 3.5 8 200 Log in or apply for an account
200-110-050 Light Section 5.5 50 16 1.2 - 3.5 8 100 Log in or apply for an account
200-110-055 Light Section 5.5 65 16 1.2 - 3.5 8 100 Log in or apply for an account
200-110-057 Light Section 5.5 80 16 1.2 - 3.5 8 100 Log in or apply for an account
200-110-059 Light Section 5.5 100 16 1.2 - 3.5 8 100 Log in or apply for an account
200-110-030 Light Section 6.3 32 16 1.2 - 4 10 100 Log in or apply for an account
200-110-032 Light Section 6.3 38 16 1.2 - 4 10 100 Log in or apply for an account
200-110-035 Light Section 6.3 50 16 1.2 - 4 10 100 Log in or apply for an account
200-110-040 Light Section 6.3 63 16 1.2 - 4 10 100 Log in or apply for an account
200-110-045 Light Section 6.3 75 16 1.2 - 4 10 100 Log in or apply for an account
200-110-100 Heavy Section 5.5 22 16 4 - 12.5 8 100 Log in or apply for an account
200-110-105 Heavy Section 5.5 32 16 4 - 12.5 8 100 Log in or apply for an account
200-110-110 Heavy Section 5.5 40 16 4 - 12.5 8 100 Log in or apply for an account
200-110-115 Heavy Section 5.5 60 16 4 - 12.5 8 100 Log in or apply for an account
200-110-125 Heavy Section 5.5 100 16 4 - 12.5 8 100 Log in or apply for an account
